NE8FDX-Y6-W
neutrik-fr / Produits / NE8FDX-P6-W

NE8FDX-P6-W

Download Data Sheet

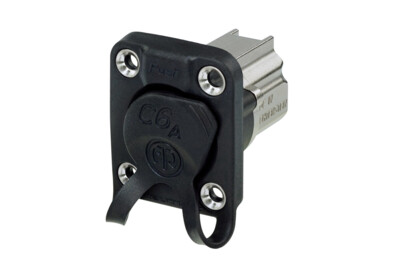

D-shape CAT6A panel connector, shielded, feedthrough, with rubber sealing, IP65 when mated, black housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.


Features & Benefits
  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt
  • Rugged latch lock system million fold proven
  • IP65 ingress protection in mated condition and unmated when sealing cap is closed
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection
  • CAT6e / Class EA according to TIA/EIA 568C and ISO/IEC 11801
Downloads
bda-442-2---ethercon-c6a---ip-65-chassis-connector
pdf - 688.11 KB
ntp07---ethercon-cat6a
pdf - 2.04 MB
iec-60529-neutrik-sne8fdx-_6-w
pdf - 5.26 MB
whitepaper_cat6a_v5-1
pdf - 14.26 MB
ne8fdx-p6-w
dxf - 1.21 MB
ne8fdx-p6-w-1
pdf - 139.35 KB
ne8fdx-p6-w_v1
stp - 7.65 MB

Technical Information

Product
Title NE8FDX-P6-W
Gender female
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT6A acc. to TIA/EIA 568C channel specifications
CLASS EA acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Lifetime > 1000 mating cycles
Wiresize
Wiring Feedthrough
Locking device Latch lock
Mounting direction Front mounting
Material
Contact plating Au
Gasket Rubber (EPDM)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Locking element plating Nickel
Environmental
Flammability UL 94 V-0
EN 45545 R26
Protection class IP 65
Temperature range -40 °C to + 70 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
