NC3MBHL
neutrik-fr / Produits / NC3MBHL

NC3MBHL

Download Data Sheet

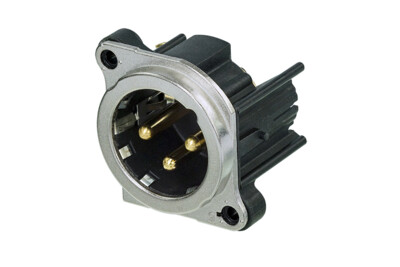

3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, steel retention lug, lateral left PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits
  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Housing flammability UL94V-0
Downloads
nc3mbhl-2
pdf - 189.49 KB
nc3mbhl-3
dxf - 1.54 MB
d-nc3mbhl-1
stp - 102.98 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
À gauche
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NC3MBHL
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V
Grounding Options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape B
Mounting B-Screw
Material
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Ring Zinc diecast (ZnAl4Cu1)
Flange Metal
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
B-SCREW-1-8

Selftapping TAPTITE® screw M2.5 DIN 7500 for B-Series, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDM

dummyPLUG for male XLR receptacles

audio
SCM

Dust protection cover for male chassis connectors
