NC3MBH-0
neutrik-fr / Produits / NC3MBH-0

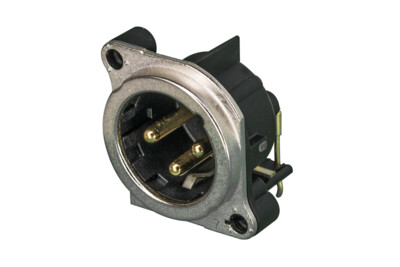

NC3MBH-0

Download Data Sheet

3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, steel retention lug, horizontal PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits
  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Housing flammability UL94V-0
Downloads
st-nc3mbh-0-1
pdf - 132.96 KB
st-nc3mbh-0
dxf - 1.03 MB
À gauche
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NC3MBH-0
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V
Grounding Options ground contact connected to shell ground, but not to front panel and Pin 1
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape B
Mounting B-Screw
Material
Contact plating 0.2 µm AuCo over 2µm NiP15 (Tribor®)
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Ck 67 steel, treated
Ring Zinc diecast (ZnAl4Cu1), gal Ni
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
B-SCREW-1-8

Selftapping TAPTITE® screw M2.5 DIN 7500 for B-Series, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
SCM

Dust protection cover for male chassis connectors

audio
NDM

dummyPLUG for male XLR receptacles
