NC3FX-SPEC.
neutrik-fr / Produits / NC3FX-SPEC

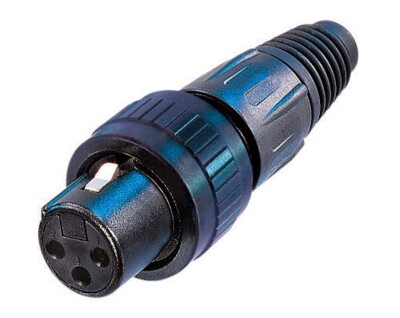

NC3FX-SPEC

Download Data Sheet

Solid 3 pole female cable connector with locking ring for highest security of connection and uninterrupted RF-screening.

Female XLR cable connector with solid `coax` shell. A small grub screw can make the connection to the microphone and Gooseneck quasi theft proof. Black metal housing with gold contacts.

Features & Benefits
  • Solid female cable connector with locking ring for highest security of connection
  • Uninterrupted EMI protection
  • Protects against accidental disconnects
  • Thief-prove, grub screw secure connector onto microphone or gooseneck
  • Avoids movements and noises
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
Downloads
nc3fx-spec-1
pdf - 44.35 KB
nc3fx-special
dxf - 14.45 KB
BDA 611 - NC3FX-SPEC - 3 pole Female XLR Cable Connector with locking ring
pdf - 2.26 MB
ul-certificate-of-compliance-xlr-xx--rx--dl--dlx-series
pdf - 220 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
Links
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NC3FX-SPEC.
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Locking nut
Material
Boot Polyurethan
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Bronze (CuSn6)
Insert Polyamide (PA66)
Locking element St3K32 (latch) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Securing Ring Brass (CuZn39Pb3)
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
BSX-*

Colored bushings

audio
HTX

Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
