NC3FD-S-1-B
neutrik-fr / Produits / NC3FD-S-1-B

NC3FD-S-1-B

Download Data Sheet

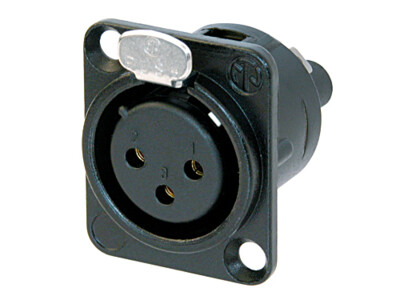

3 pole female receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component

Features & Benefits
  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Screw terminals
Downloads
nc3fd-s-1-b-1
pdf - 39.22 KB
nc3fd-s-1-b-2
dxf - 346.6 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC3FD-S-1-B
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 3 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize 0.14 mm² bis 0.5 mm²
Wiresize 26 AWG - 20 AWG
Wiring screw terminals
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape D
Material
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Bronze (CuSn8)
Insert PA66
Locking element Steel Ck67
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Temperature range -30 °C to +80 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DBA-BL

Dummy-plate to cover D-shape cutouts

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
NDF

dummyPLUG for Neutrik female XLR receptacles

audio
SCDF

Rubber sealing cover for XLR D-Series female

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio
SCF

Dust protection cover for female chassis connectors

SCCD-W

Spring-loaded sealing cover
