NBNB75GLP9
neutrik-fr / Produits / NBNB75GLP9

NBNB75GLP9

Download Data Sheet

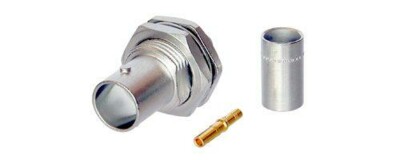

BNC cable jack for panel mount, grounded

Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Suitable cables:
Belden 1505A, Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451

Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)

Features & Benefits
  • Gold plated center contact
  • True 75 Ω design meets the stringent HD requirements
  • Grounded panel mount
Downloads
nbnb75glp9-2
pdf - 69.08 KB
nbnb75glp9-3
dxf - 20.37 KB
bnc-cable_jack_panel_version
pdf - 652.21 KB
BNC Cable and Connector Guide
pdf - 627.89 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBNB75GLP9
Connection Type BNC 75 Ω
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 6.3 mm
Cable retention > 30 N (Center)
Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Mounting direction Rear mounting
Chassis shape 12.7 mm
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
Accessories
video
DIE-BNC-PG

Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

industrial
DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
