NBNC75B
neutrik-fr / Produits / NBLC75BVZ17

NBLC75BVZ17

Download Data Sheet

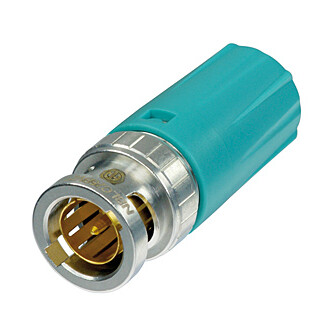

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD).

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications.

Suitable cables:
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere

Crimp size:
Pin: 1.8 mm
Shield: 10.0 mm (hex)

Features & Benefits
  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include crimp tool and dies
Downloads
nblc75bvz17-1
pdf - 40.96 KB
nblc75bvz17
dxf - 604.89 KB
bnc-rear_twist-large
pdf - 626.45 KB
true-75-ohm-hd-bnc-connectors
pdf - 459.83 KB
neutrik-bnc-reartwist-white-paper
pdf - 979.28 KB
BNC Cable and Connector Guide
pdf - 627.89 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBLC75BVZ17
Connection Type BNC 75 Ω
Gender male
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 10.4 mm
Cable retention > 30 N (Center)
Crimp size 10.0 mm (HEX)
Crimp size (pin) 1.8 mm
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
Accessories
video
BST-BLC-CY

Turquoise boot for the rearTWIST Large BNC cable connectors

video
CAS-BNC-T

BNC tool kit including the ideal working tools for the assembly of our BNC cable connectors

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

video
CS-BNC-LCV

Coax cable stripper for cable O.D. ≥8.0 mm

DIE-R-BNC-ZPLUS

Crimp tool die for HX-R-BNC Pin crimping: HEX 1.8 mm Shield and jacket: HEX 10.0 mm (A)
