nbb75fi BNC Feedthrough Cage Type Contact
nbb75fi
BNC Feedthrough Cage Type Contact
1/2
neutrik-fr / Produits / NBB75FI

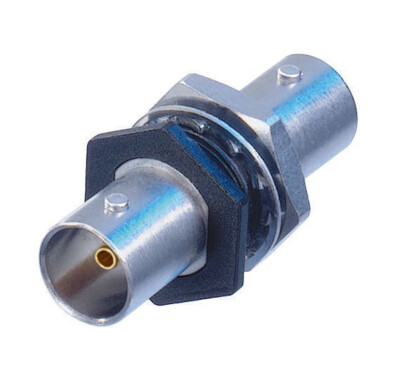

NBB75FI

Download Data Sheet

Traversée de cloison BNC isolée pour montage sur panneau,

La traversée decloison BNC pour montage sur panneau de Neutrik offre une véritable impedance de 75 Ω pour les signaux série et numériques (HD et UHD). Le corps du connecteur en laiton usiné fournit une connexion extrêmement robuste et non garantie sur une utilisation à long terme.

Caractéristiques & avantages
  • Contact central de type cage plaqué or
  • Conception véritable de 75 Ω répond aux exigences HD & UHD les plus strictes
  • Montage sur panneau avec isolant (résout les problèmes potentiels de mise à la terre et empêche l'influence de mode commun avec d'autres connexions effectuées sur le même potentiel de terre du panneau)
  • L'écrou de fixation extra large évite d'endommager le filetage en plastique
telechargements
nbb75fi-2
pdf - 358.4 KB
nbb75fi-3
dxf - 19.2 KB
nbb75fi
stp - 238.96 KB
nbb75f-nut
stp - 32.29 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBB75FI
Connection Type BNC 75 Ω
Gender female
Electrical
Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Mounting direction Front mounting
Chassis shape 12.7 mm
Material
Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
New cage type contact
  • Conception à contact fermé
  • Extrêmement robuste
  • Clip de type cage plaqué or
  • meilleur blindage possible et résistance de contact la plus faible


BNC Feedthrough Cage Type Contact
