nbb75dfi BNC Feedthrough Cage Type Contact
nbb75dfi
BNC Feedthrough Cage Type Contact
1/2
neutrik-fr / Produits / NBB75DFI

NBB75DFI

Download Data Sheet

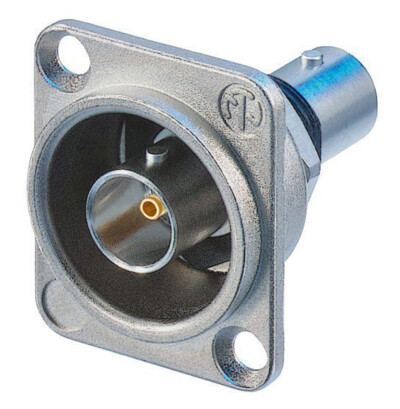

Isolated BNC chassis connector, feedthrough in nickel D-shape housing

Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Features & Benefits
  • Gold plated cage type center contact
  • True 75 Ω design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Standard D-shape housing - provides flush mounting and protection from demage
  • Color coding possible



Downloads
nbb75dfi-3
pdf - 41.42 KB
nbb75dfi-6
dxf - 439.33 KB
3-d-nbb75dfi
stp - 107.62 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBB75DFI
Connection Type BNC 75 Ω
Gender female
Electrical
Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.03/>37 dB up to 1 GHz
≤1.05/>32 dB up to 2 GHz
≤1.08/>28 dB up to 3 Ghz
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Polyacetal (POM) (Insulation Sheell)
Shell plating Optalloy®
D-Shape housing Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental
Temperature range -30 °C to +85 °C
Accessories
audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
SCDX

Hinged cover

audio
SCF

Dust protection cover for female chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap

New cage type contact
  • Closed contact design - extremely robust
  • Gold plated cage type clip - best possible shielding and lowest contact resistance
BNC Feedthrough Cage Type Contact
