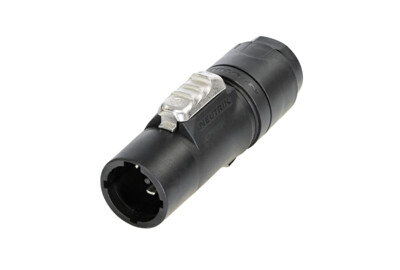

NAC3MX-W-TOP-L

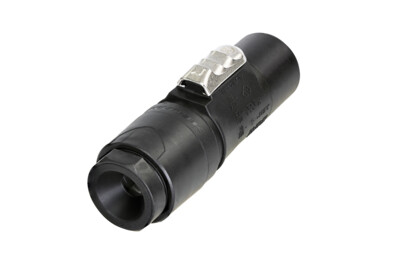

NAC3MX-W-TOP-L_rear_view

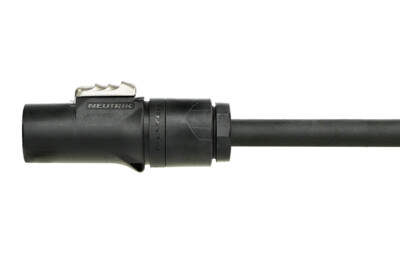

NAC3MX-W-TOP-L_Side_view_with_Cable_H07RN-F

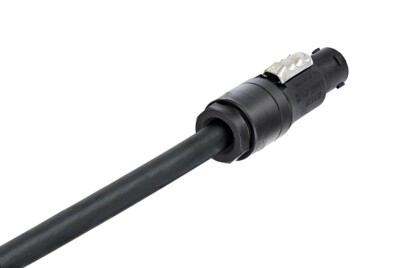

NAC3FX-W-TOP-L_Rear_with_Cable_H07RN-F

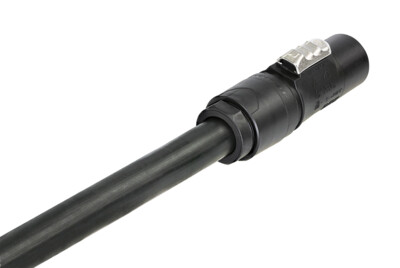

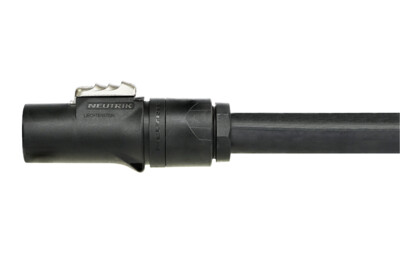

NAC3MX-W-TOP-L_Side_view_with_Cable_SOOW
NAC3MX-W-TOP-L_Rear_with_Cable_SOOW
1/6
neutrik-fr / Produits / powerCON® / powerCON® TRUE1 / NAC3MX-W-TOP-L

NAC3MX-W-TOP-L

Download Data Sheet

PHASE OUT
direct replacement / successor: NAC3M-TRUE1-L



Locking cable connector​ for big power cords with outer diameters from 10–16 mm  (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.

Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)

The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.

Features & Benefits
  • For cable diameters 10-16 mm (0.39 – 0.63 inches)
  • IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1.
  • Heavy duty sealed power connector for harsh and demanding environment
  • TOP True Outdoor Protection
  • Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
  • Extremely robust and reliable cable retention
  • Superior NEUTRIK quality standard
Downloads
NAC3MX-W-TOP-L
stp - 24.95 MB
NAC3MX-W-TOP-L
pdf - 736.22 KB
nac3mx-w-top-l
dxf - 3.2 MB
BDA 625 V5 - powerCON Cable Connector Male NAC3MX-W-TOP-L
pdf - 4.85 MB
Application Note TRUE1-TOP-L V2 20220128
pdf - 102.47 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
VDE Certificate ENEC10VDE NAC3MX-W-TOP NAC3MX-W-TOP-L
pdf - 310.92 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB

Technical Information

Product
Title NAC3MX-W-TOP-L
Connector series powerCON TRUE1
Electrical
Dieletric strength 2.8 kVac
Insulation resistance > 0.1 GΩ
Number of electronical contacts 2 + PE
Rating Europe IEC EN 60320-1: 16 A 250 V AC
Certified with cable types: H07RN-F3G2.5
Rating USA UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
Certified with cable types:
- SOOW 12/3, SOOW 14/3
- SJOOW 12/3
Mechanical
Cable O.D. 10 – 16 mm (0.39 – 0.63 inches)
Lifetime Typically 5’000 mating cycles
Wire size (mm²) 2.5 mm²
Wire size (AWG) 14 – 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL94 V-0
Protection class IP65
UV resistance F1 rated material withstands UV exposure
Accessories
HTLACB

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

HTLACA View 2.png
HTLACA

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

powerCON_SCM-TRUE1 TOP_persp front_RGB_WEB.png
SCM-TRUE1-01

Ruggedized sealing cover (male) with ergonomic design for powerCON TRUE1 TOP cable connectors

Dichtkappe_SCNAC-MX_persp front liegend_RGB_WEB.png

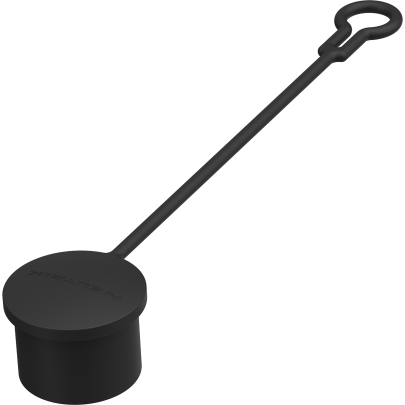

SCNAC-MX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3MX-W-TOP from dust and water according to protection class IP65.

powerCON TRUE1 TOP L - assembly video

Features powerCON® TRUE1® L

Product related questions and answers
Question Answer
Is the new cable entry patented? There is a patent application in process which is related to the cable entry section.
How are the certifications different to the current version NAC3*X-W-TOP? EN certification:
Both versions are certified according to EN 60320-1.
The new L-version however is certified for large cables as follows:
H07RN-F 3G 2,5 mm²
The old version is certified for cable types:
H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm²
UL certification:
The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SJOOW 12/3. The old version is certified according to UL 498.
JET certification:
Both versions are JET certified.
What are the mechanical differences to the current version NAC3*X-W-TOP? The whole cable entry section had to be redesigned in order to:
- To cover the large cable range (10 - 16mm)
- To meet the standards requirement to prevent disassembling by hand
- To improve the assembly process
The housing and insert parts are the same
When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections.
Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required.
