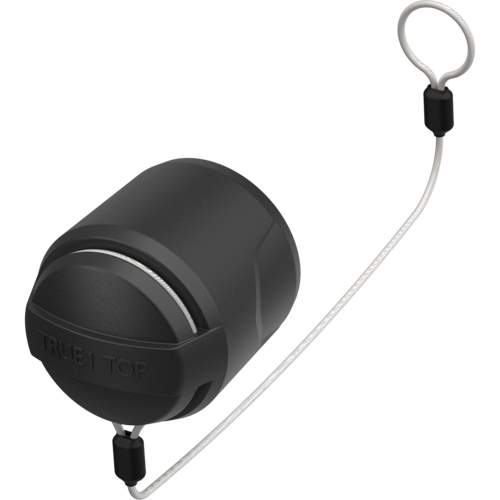

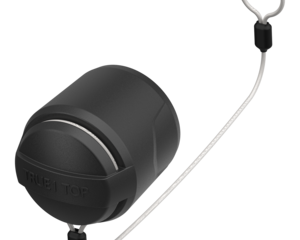

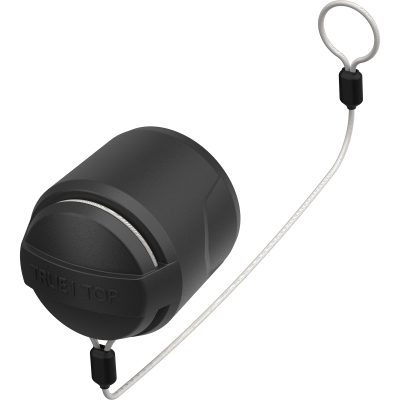

powerCON_SCM-TRUE1 TOP_persp front_RGB_WEB

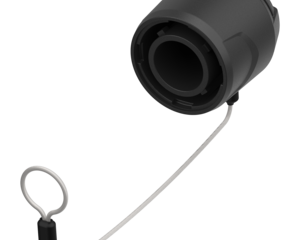

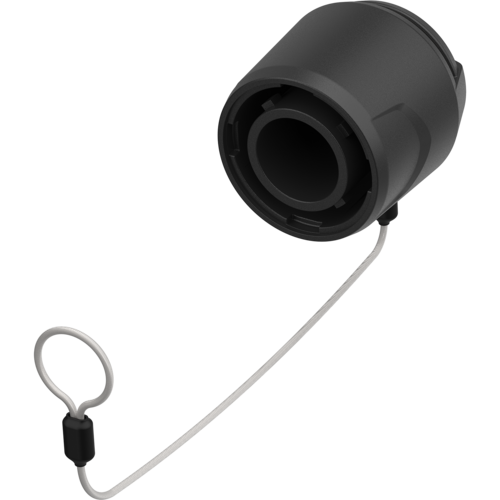

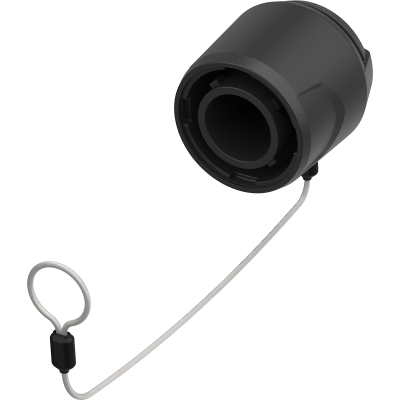

powerCON_SCM-TRUE1 TOP_persp back_RGB_WEB

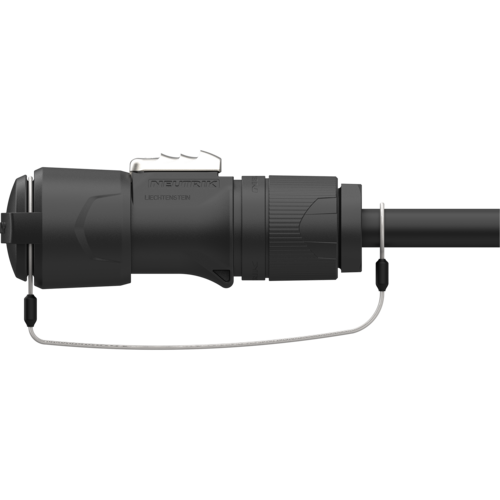

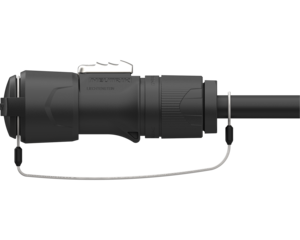

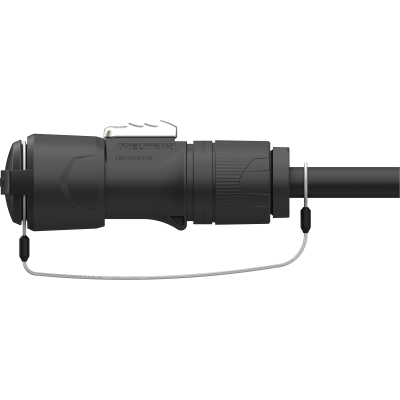

powerCON_SCM-TRUE1 TOP Cable Connector_side_RGB_WEB

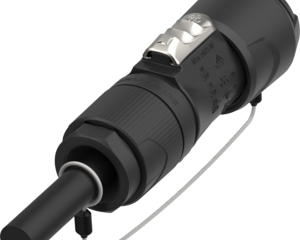

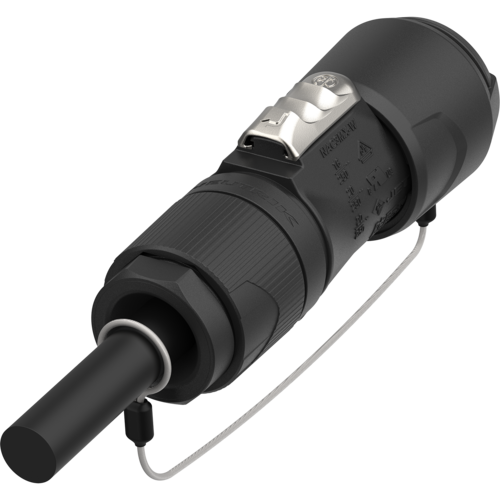

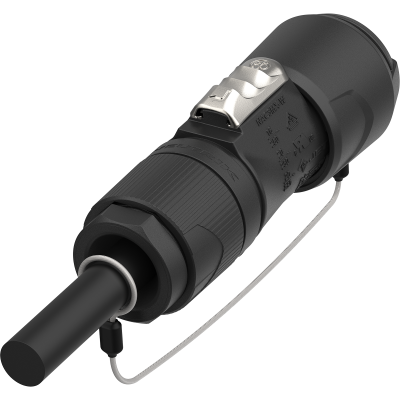

powerCON_SCM-TRUE1 TOP Cable Connector_persp back_RGB_WEB

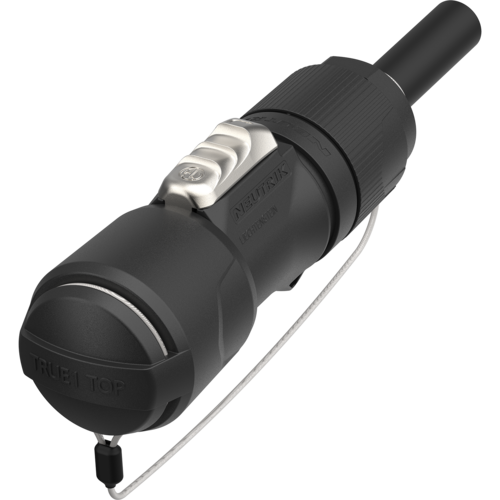

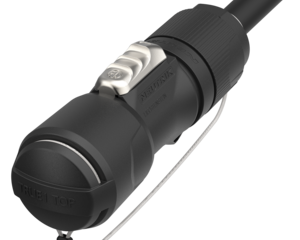

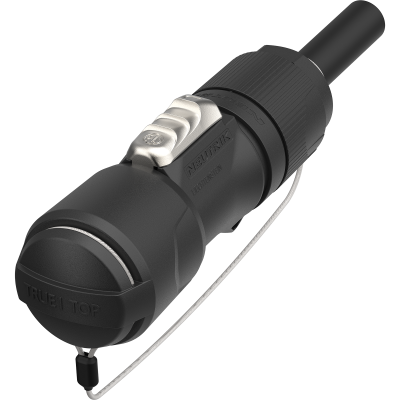

powerCON_SCM-TRUE1 TOP Cable Connector_persp front_RGB_WEB
1/5
neutrik-fr / Produits / powerCON® / powerCON® Accessories / SCM-TRUE1-01

SCM-TRUE1-01

Download Data Sheet

Ruggedized sealing cover (male) with ergonomic design for powerCON TRUE1 TOP cable connectors.

With its twist-lock mechanism, this product guarantees a secure interlock with the corresponding cable connector. It not only protects against particulate pollution but also offers effective protection against water ingress. Another advantage of this product is the stepless locking mechanism, which allows easy mounting on assembled cables and ensures effortless fixation.

This product, with UV-resistant material, meets all TOP product requirements and is suitable for harsh environments.

Features & Benefits
  • Ruggedized construction with steel cable
  • Twist lock mechanism
  • Stepless locking mechanism
  • Mountable onto already assembled cables
  • Protection class: IP65 / IP67
  • UV-resistant material for use in harsh outdoor environments
Downloads
20004399_-_SCM-TRUE1-01
dxf - 645.67 KB
20004399_-_SCM-TRUE1-01
pdf - 175.65 KB
30010605_-_SCM-TRUE1-01
stp - 1.58 MB
BDA 693 V1 - Sealing Caps for Cable Connectors powerCON
pdf - 3.4 MB

Technical Information

Product
Title SCM-TRUE1-01
Gender male
Material
Material TPU (soft component), PA66 (hard component)
Color black
Environmental
Flammability acc. to UL94 HB
Protection class acc.to IEC 60529 IP65, IP67
