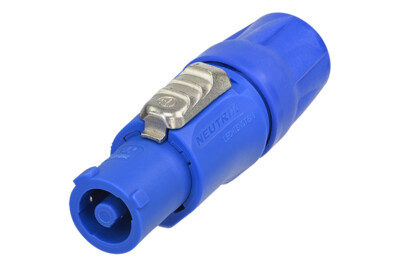

NAC3FCA
neutrik-fr / Produits / NAC3FCA

NAC3FCA

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NAC3FXXA-W-S (cable OD 6-12 mm)  and NAC3FXXA-W-L (cable OD 10-16 mm)

Lockable cable connector, power-in, screw terminals, blue

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
    VDE certified
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Downloads
Certificate_VDE_40014741 (2022-02-25)
pdf - 324.23 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
BDA 452 V4 - powerCON - NAC3FCA + NAC3FCB
pdf - 3.61 MB
st-nac3fca
pdf - 284.06 KB
st-nac3fca
dxf - 2.42 MB
NAC3FCA
stp - 5.82 MB
Links
UL Certificate (ECBT2.E135070) cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title NAC3FCA
Gender female
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 61984:20 A 250 V AC
Rating USA UL 1977:20 A 250 V AC
Mechanical
Cable O.D. 6 - 15 mm (1)
Lifetime > 1000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Locking device Quick Lock
(1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Protection class IP 20
Flammability Rating UL 94 HB
Accessories

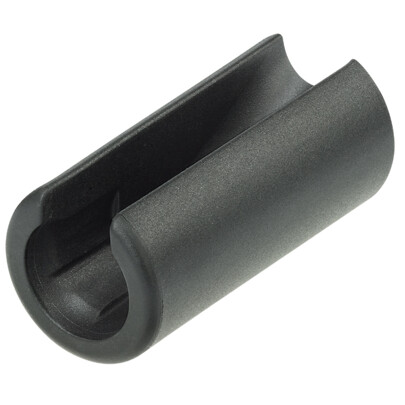

HTFAC

Hand tool for tightening the bushing of the speakON NL4FC and the powerCON 20A cable connectors.

audio

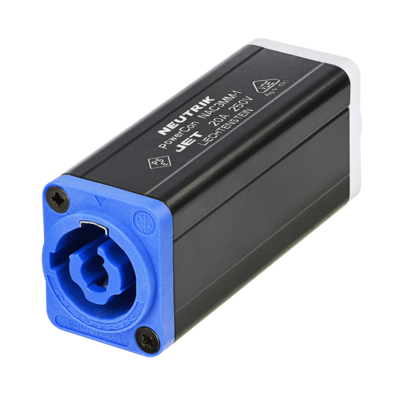

NAC3MM-1 - 202210.png
NAC3MM-1

powerCON NAC3MPXXA (power in) - powerCON NAC3MPXXB (power out), CBC coupler for linking cables
