neutrik-fr / Produits / Systeme fibre optique opticalCON® / opticalCON® ADVANCED / opticalCON® DUO / opticalCON® DUO Accessories / LC Patch Cable

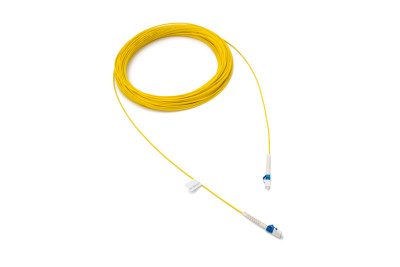

LC Patch Cable

Download Data Sheet

High performance LC patch cable to connect the rear side of the opticalCON®  DUO or opticalCON® QUAD and FIBERFOX chassis connectors with low insertion loss and optimized optical return loss values.

Features & Benefits
  • LC connector
  • Small form factor
  • Unique fiber design for high cable performance
  • Individual lengths available
  • Single and multimode
Downloads
Drawing NKOP1 (PDF)
pdf - 52.35 KB

Technical Information

Product
Title LC patch cable
Environmental
Temperature range -10 °C to +60 °C (Indoor controlled environment)
Optical
Insertion loss Singlemode: <0,25dB (@1310/1550nm)
Multimode: <0,25dB (@850/1300nm)
Return loss Singlemode: >50dB(UPC) (@1310/1550nm)
Multimode: >30dB (@850/1300nm)
Optical connector LC[PC]
Mobile cable
Outer diameter 2.0mm (approx.)
Jacket material LSZH
Core diameter Multimode 50 µm
Singlemode 9 µm
Cladding diameter 125 µm
Number of fibers 1
Accessories
audio

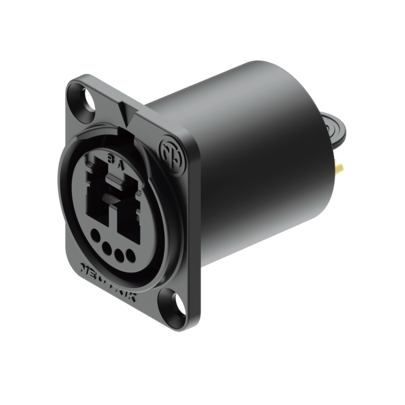

NO2-4FDW-A - opticalCON DUO ADVANCED CHASSIS CONNECTOR_sideview.png
NO2-4FDW-A

Chassis connector, black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

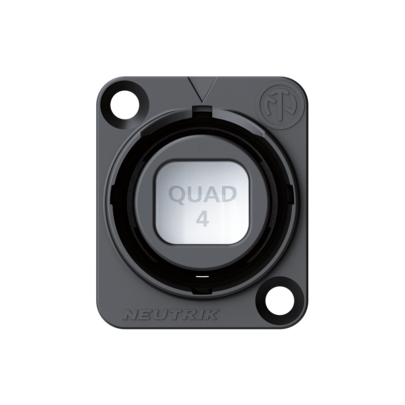

NO4FDW-A - opticalCON QUAD ADVANCED CHASSIS CONNECTOR_topview.png
NO4FDW-A

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

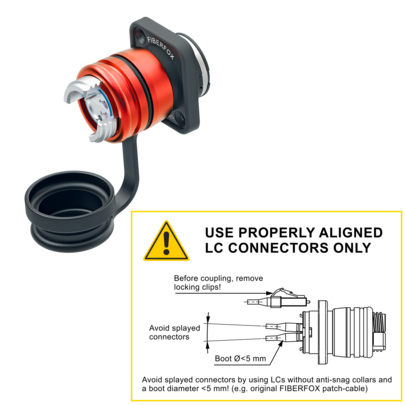

FIBERFOX_NO2M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 2CH briDge
FIBERFOX_NO4M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 4CH briDge
data

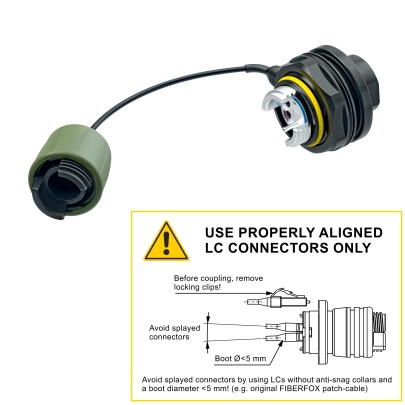

FIBERFOX_NO2SJW-FG-BO_persp front_RGB_WEB !.png
FIBERFOX EBC25 4CH chassis

FIBERFOX EBC25 4CH chassis in jam-nut design

data

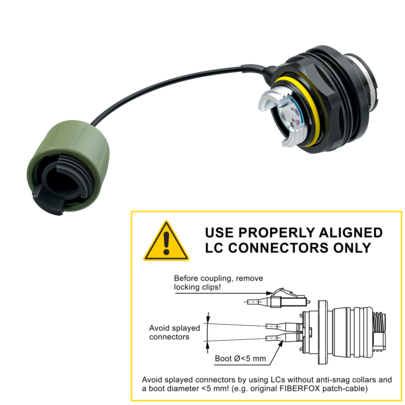

FIBERFOX_NO2M4JW-FG_persp front_RGB_WEB !.png
FIBERFOX EBC25 2CH chassis

FIBERFOX EBC25 2CH chassis in jam-nut design

Ordering Information
Product Code                     DescriptionFrom connector         To connector    Fibertype
NKOP1S-LC-0-1LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-2LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-3LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-5LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1S-LC-0-10LC Patch Cable SMLC[PC]LC[PC]Singlemode
NKOP1M-LC-0-1LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-2LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-3LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-5LC Patch Cable MMLC[PC]LC[PC]Multimode
NKOP1M-LC-0-10                      LC Patch Cable MM              LC[PC]  LC[PC]Multimode
