FIBERFOX-27405001-vs-briDge
neutrik-fr / Produits / FIBERFOX / FIBERFOX EBC15 (D-size) / FIBERFOX EBC15 Cable / FIBERFOX EBC15 4CH briDge

FIBERFOX EBC15 4CH briDge

Download Data Sheet

The FIBERFOX 4CH briDge is an expanded beam multimode hermaphroditic chassis connector and suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The chassis connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard. ​ ​

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX briDge chassis connector is the first one who converts a standardized LC Patch cable into an expanded beam solution. It acts as a “feed-through” and fits into standard D-size shell.

Features & Benefits
  • Suitable for installation and wireways without special tools
  • Integration of other fiber optic systems into FIBERFOX
  • No splicer, no expertise required for Installation
  • Very compact design - fits in every D-hole just like opticalCON©
  • Easy patching with common patch cables (LC to LC, LC to SC, LC to ST)

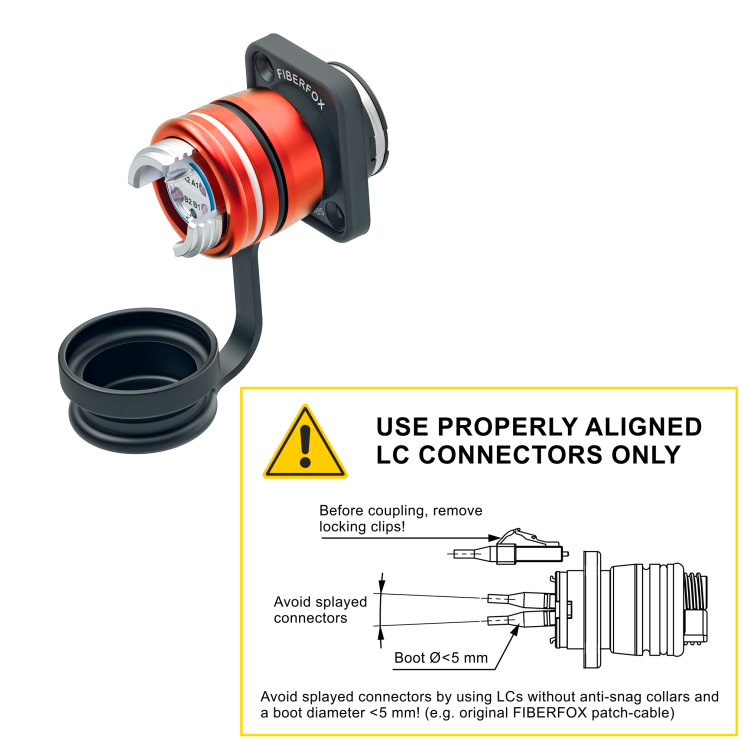

    WARNING: Boot diameter must be smaller than 5mm. Suitable Neutrik patch cables are available.
  • IP68 Waterproof even without a protective cap, optimized for outdoor use
  • Extremely service-friendly
Downloads
NO4M4DW-FX_Step_01
STEP - 9.21 MB
Drawing NO4M4DW-FX
pdf - 701.7 KB
Drawing NO4M4DW-FX
vnd.dwg - 895.51 KB
Handling Instruction - FIBERFOX
pdf - 1.42 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB

Technical Information

Product
Title FIBERFOX 4CH briDge
Gender Hermaphroditic
Mechanical
Mounting Direction Front & Rear Mounting
Chassis Shape D-Shape
Lifetime >10000 mating cycles
Locking device Screwed
Free fall Resistance 500 falls onto contrete from 1.2m height
Bump Resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 mated and unmated (1m for 60 min)
Compatibility MIL-DTL-83526
Temperature Range -40°C to +70° C
Optical
Insertion loss Typ. 1.5dB per connection / Max. 2.5dB per connection
Optical Connector EBC
Optical wiring ISO / IEC 11801 ISO / IEC 11801
Accessories
audio
LC Patch Cable
SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

FIBERFOX_NKO4S_FX_blue front_persp front_RGB_WEB.png
FIBERFOX EBC15 4CH Cable
SCNOX-FX
FIBERFOX-27405001-vs-briDge
BRIDGE 4CH
Order codeProduct codeDescription
1027422NO4M4DW-FXFIBERFOX briDge Chassis coupler 4CH MM OM4
