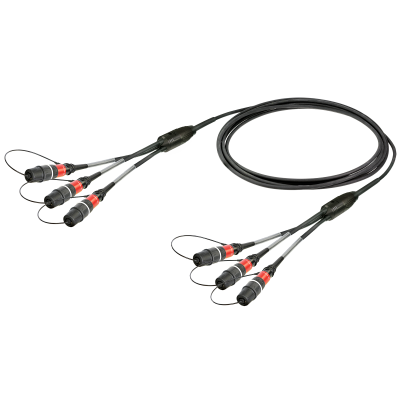

FIBERFOX Split V3 - 202310

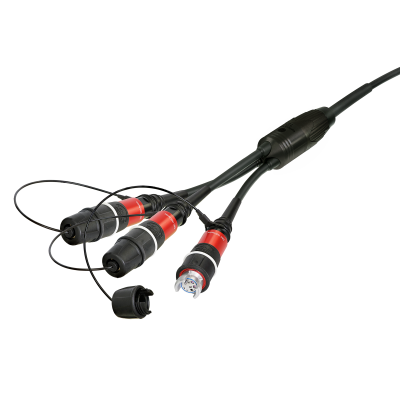

FIBERFOX Split V2 - 202310

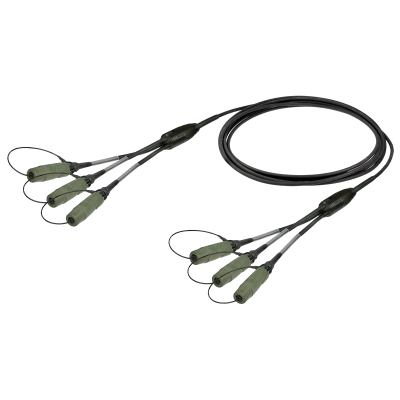

FIBERFOX Split EMC25 V3 - 202311

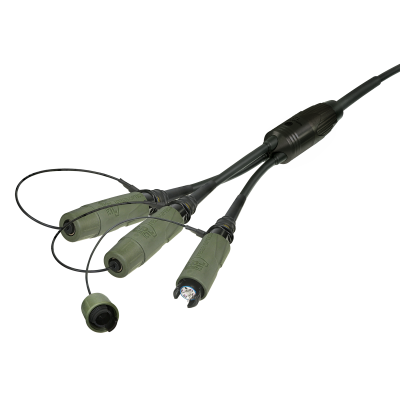

FIBERFOX Split EMC25 V2 - 202311
1/4
neutrik-fr / Produits / FIBERFOX / FIBERFOX SPLIT / FIBERFOX SPLIT

FIBERFOX SPLIT

Download Data Sheet

Multichannel solution based on FIBERFOX EBC15 & EBC25 in 2 and/or 4CH variation. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The FIBERFOX 2CH Cable connector is an expanded beam multimode hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Customer specific solutions are available on request. Standard variations offer TRIPLE SPLIT (3*FIBERFOX 2CH or 3* FF 4CH) and QUAD SPLIT (4*FIBERFOX 2CH)

Features & Benefits
  • TRIPLE SPLIT (3*FIBERFOX 2CH or 3*FF 4CH)
  • QUAD SPLIT (4*FF 2CH)
  • Multichannel solution based on FIBERFOX EBC15 & EBC25 in 2 and/or 4CH
  • maximum flexibility combining 2- and 4-channel cables
  • Multi mode fiber cables offer laser and bend optimized OM3 fibers
  • 1 m SPLIT: mechanically damaged connectors can be reassembled with a slightly shortened cable split
  • Rugged fiber optic connection system
  • For Point-to-Point multichannel routing
  • Dust and water resistant according to IP68 (1m for 60 min)
Downloads
NKOY_-FX_Drawing_01
pdf - 156.9 KB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB
Handling Instruction - FIBERFOX
pdf - 1.42 MB

Technical Information

Product
Title FIBERFOX SPLIT
Mechanical
Cable retention 500 N
Lifetime (typ.) 1'800N
Tensile Strength 1'800N
Compressive load 50'000N
Free fall resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP65
Compatibility MIL-DTL-83526
Temperature range -40 °C to +70 °C
Optical
Insertion Loss Typ. 1.5dB per connection / Max. 2.5dB per connection
Optical Connector EBC15 (ruby red) or EBC25 (government version)
Optical wiring ISO / IEC 11801 ISO / IEC 11801
Mobile cable
Colour black, shiny
Core diameter Multimode 50µm OM3
Cladding diameter 125 µm
Minimal bending radius 10.9 cm
Number of fibers up to 12
Cable retention Aramid yarn
Weight 103 kg/km
Cable diameter 10.9 mm
Accessoires

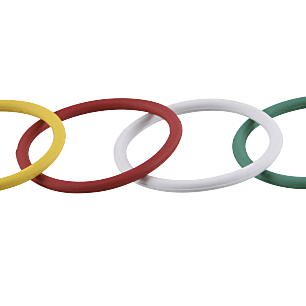

NOR-FX*

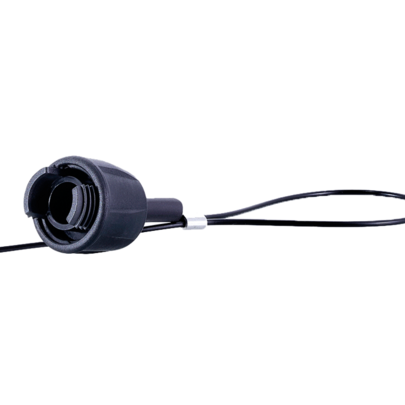

SCNOX-FX

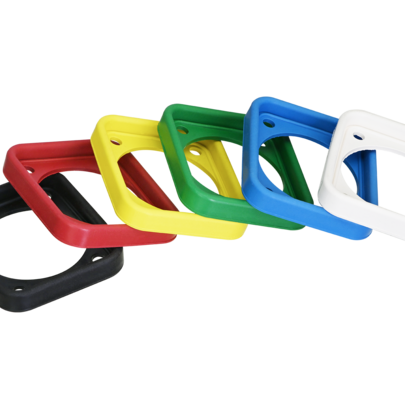

SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

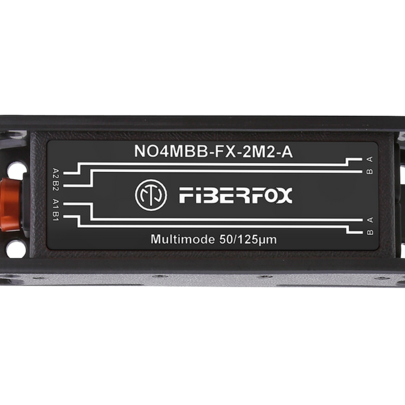

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX

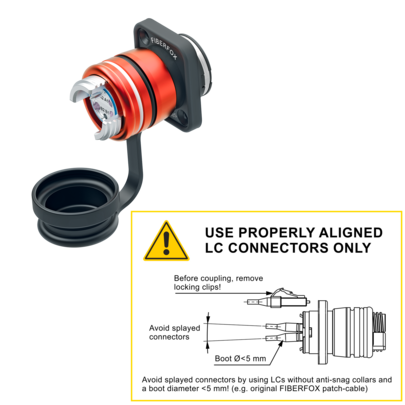

FIBERFOX_NO4M4DW-FX_persp front_RGB_WEB !.png
FIBERFOX EBC15 4CH briDge

Cable cross section

opticalCON SPLIT - cable cross section

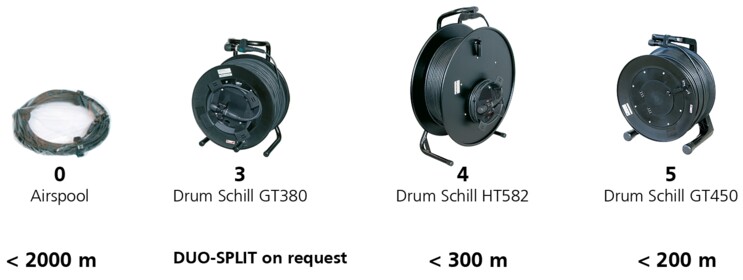

Packaging options and max. cable length

opticalCON SPLIT - cable lengh for packing option
