neutrik-fr / Produits / DATA CABLES / essential DATA CABLES / USB Type C 10G AEC Cables

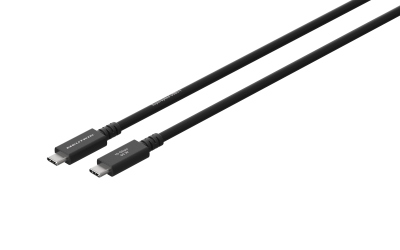

USB Type C 10G AEC Cables

Download Data Sheet

The NEUTRIK USB Type C 10G AEC Cables are part of the essential DATA CABLES product group. These cables are for data connectivity and power delivery in indoor environments allowing to transmit 10 Gbps and supply 60 W between devices over long distances with the AEC technology.

Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.

Features & Benefits
  • 60 W (20 V / 3 A) Power Delivery according to USB PD 3.0
  • 10 Gbps according to USB 3.1 Gen 2x1


Technical Information

Product
Title NKUCA10-U0U0-*
Product group essential DATA CABLES
Connection type USB Type C AEC
Description PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations.
Electrical
Rated current per contact 3 A
Rated voltage 20 V
Power delivery 60 W acc. to USB PD 3.0
Transmission performance 10 Gbps acc. to USB 3.1 Gen 2x1
Insulation resistance > 2 MΩ
Conductor resistance < 3 Ω
Mechanical
Lifetime 10'000 mating cycles
Locking device Without locking device
Material
Contact plating Pin: AU
Plug: NI
Contacts Copper Alloy
Cable Jacket Type TPE
Shell PVC
Environmental
Flammability V-0 acc. to UL94
Temperature range -25°C to +60 °C
Standard compliance Regulation (EU) 2011/65
Regulation (EU) 2023/988
Regulation (UK) 2016 No. 1101
Ingress protection class IP20
Article Variants
Aticle nameDetailsOrder code
NKUCA10-U0U0-M0015      USB Type C 10G AEC Cable (m) (m) 1.5 m with retail packaging1038968
NKUCA10-U0U0-M0015USB Type C 10G AEC Cable (m) (m) 1.5 m with bulk/eco packaging1038969
NKUCA10-U0U0-M0020USB Type C 10G AEC Cable (m) (m) 2.0 m with retail packaging1038970
NKUCA10-U0U0-M0020USB Type C 10G AEC Cable (m) (m) 2.0 m with bulk/eco packaging1038971
NKUCA10-U0U0-M0030USB Type C 10G AEC Cable (m) (m) 3.0 m with retail packaging1038972
NKUCA10-U0U0-M0030USB Type C 10G AEC Cable (m) (m) 3.0 m with bulk/eco packaging1038973
NKUCA10-U0U0-M0040USB Type C 10G AEC Cable (m) (m) 4.0 m with retail packaging1038974
NKUCA10-U0U0-M0040USB Type C 10G AEC Cable (m) (m) 4.0 m with bulk/eco packaging1038975
NKUCA10-U0U0-M0050USB Type C 10G AEC Cable (m) (m) 5.0 m with retail packaging1038976
NKUCA10-U0U0-M0050USB Type C 10G AEC Cable (m) (m) 5.0 m with bulk/eco packaging1038977
