neutrik-fr / Produits / DATA CABLES / essential DATA CABLES / Ultra High Speed HDMI® Cables

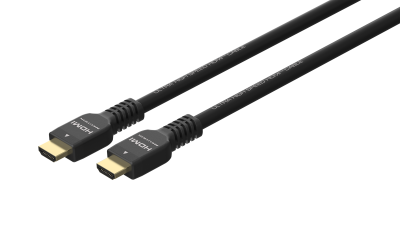

Ultra High Speed HDMI® Cables

Download Data Sheet

The HDMI® certified Ultra High Speed HDMI® Cables from NEUTRIK are part of the essential DATA CABLES product group. These cables are for demanding AV applications in indoor environments and support a range of higher video resolutions and refresh rates including 8K60 and 4K120, and resolutions up to 10K. Dynamic HDR formate are also supported and bandwith capabilities up to 48 Gbps.

Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.

Features & Benefits
  • 48 Gbps bandwith support for uncompressed HDMI® 2.1b feature support
  • 8K60Hz and 4K120Hz high resolutions and fast referesh rates for immersive viewing and smooth fast-action details
  • 10K resolutions support with DSC for commercial AV and industrial applications
  • Dynamic HDR support for ideal depth, detail, brightness, contrast and wider color gamuts
  • eARC simplifies connectivity, provides greater ease of use, and supports the most advanced audio formats and highest audio quality
  • HDCP revision 2.3
  • Backward compatible with earlier HDMI® specifications
  • Very low EMI emissions
  • Ultra High Speed HDMI® certified

Technical Information

Product
Title NKHP21-H0H0-*
Product group essential DATA CABLES
Connection type HDMI®
Description PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations.
Electrical
Transmission performance 48 Gbps acc. to HDMI® 2.1b
Mechanical
Lifetime 1'000 mating cycles
Locking device Without locking device
Material
Contact plating AU
Contacts Brass
Cable Jacket Type PVC
Shell PVC
Environmental
Flammability V-0 acc. to UL94
Temperature range -25°C to +80 °C
Standard compliance HDMI® 2.1b / Ultra High Speed HMDI® certified
Regulation (EU) 2011/65
Regulation (EU) 2023/988
Regulation (UK) 2016 No. 1101
Ingress protection class IP20
Article Variants
Article nameDetailsOrder code
NKHP21-H0H0-M0009            Ultra high Speed HDMI® Cable (m) (m) 0.9 m (3ft) with retail packaging1038960
NKHP21-H0H0-M0009Ultra high Speed HDMI® Cable (m) (m) 0.9 m (3ft) with bulk/eco packaging1038961
NKHP21-H0H0-M0018Ultra high Speed HDMI® Cable (m) (m) 1.8 m (6ft) with retail packaging1038962
NKHP21-H0H0-M0018Ultra high Speed HDMI® Cable (m) (m) 1.8 m (6ft) with bulk/eco packaging1038963
NKHP21-H0H0-M0036Ultra high Speed HDMI® Cable (m) (m) 3.6 m (12ft) with retail packaging1038964
NKHP21-H0H0-M0036Ultra high Speed HDMI® Cable (m) (m) 3.6 m (12ft) with bulk/eco packaging1038965
NKHP21-H0H0-M0050Ultra high Speed HDMI® Cable (m) (m) 5.0 m (16ft) with retail packaging1038966
NKHP21-H0H0-M0050Ultra high Speed HDMI® Cable (m) (m) 5.0 m (16ft) with bulk/eco packaging1038967
