SCNAC-FPX
*** DISCONTINUED ***
Direct replacement / successor: SCNAC-03

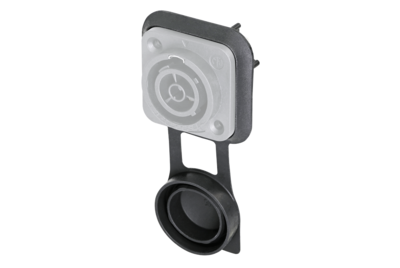

The rubber sealing cover protects the powerCON TRUE1 female chassis connector NAC3FPX* from dust and water according to protection class IP65.
Downloads
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
assembly-instruction---sealing-cover
pdf - 232.03 KB
ip-test-report
pdf - 1.61 MB
BDA 380 - powerCON TRUE 1 - NAC3MX-W
pdf - 4.87 MB
scnac-fpx
dxf - 712.51 KB
scnac-fpx_Strichzeichnung
pdf - 203.67 KB
scnac-fpx
stp - 1.38 MB
Technical Information
| Product | |
|---|---|
| Title | SCNAC-FPX |
| Material | |
|---|---|
| Material | EPDM |
| Environmental | |
|---|---|
| Flammability | UL94 HB |
| Protection class | IP65, UL50E enclosure type 4 |
