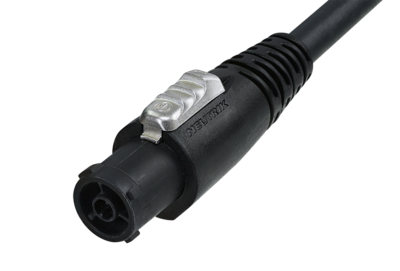

powerCON TRUE1 cable female
neutrik-fr / Produits / powerCON TRUE1 - Power cord open-end

powerCON TRUE1 - Power cord open-end

Download Data Sheet

Cordon d'alimentation surmoulé prêt à l'emploi dans la classe de protection IP65. Le câble utilise un cordon standard avec 3 conducteurs de section 1,5 mm2 ou AWG 12. Les câbles sont équipés de Neutrik powerCON TRUE1 NAC3FX-W ou NAC3MX-W surmoulés.

L'autre extrémité est ouverte pour la terminaison des connecteurs locaux. Connecteurs locaux surmoulés sur demande. Les câbles sont disponibles en différentes longueurs.

Telechargement
nkpf_nc
pdf - 480.23 KB
nkpf-nc-
dxf - 1.17 MB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
À gauche
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

Detail des codes produit

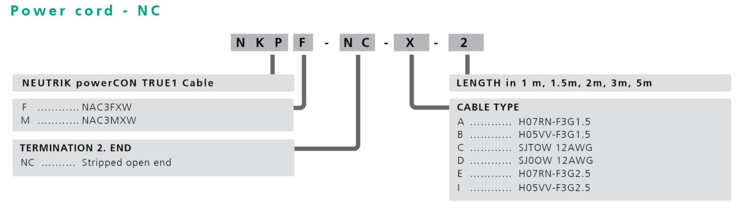

powerCON TRUE1 Part Number Breakdown Power Cord
powerCON TRUE1

Le powerCON TRUE1 est un vrai connecteur secteur étanche IP65 16 A (USA : 20 A) verrouillable. Il remplace les prises d'appareils partout où une solution très robuste associée à un dispositif de verrouillage est nécessaire pour garantir une connexion électrique sûre.

Le powerCON TRUE1 est un connecteur avec pouvoir de coupure (CBC), c'est-à-dire qu'il peut être connecté ou déconnecté sous charge ou sous tension.

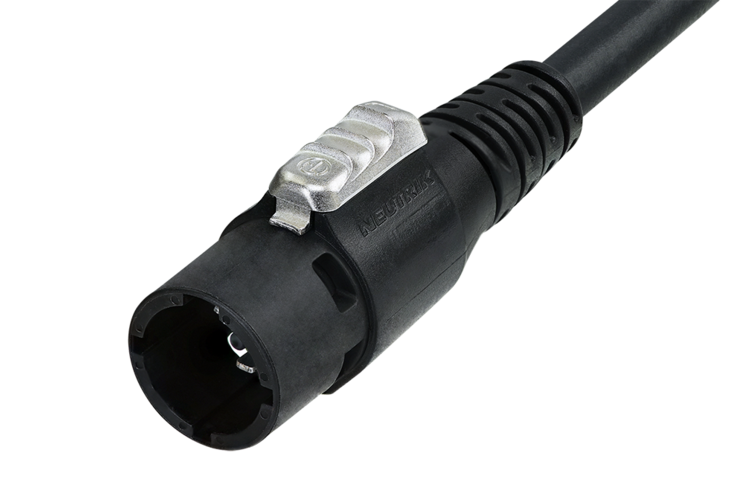

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

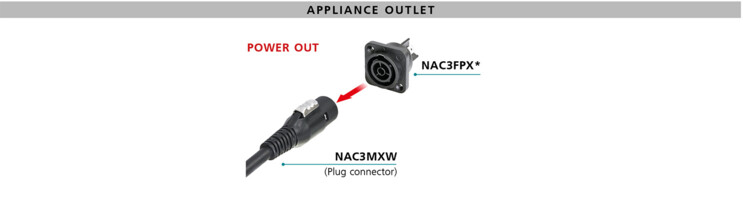

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

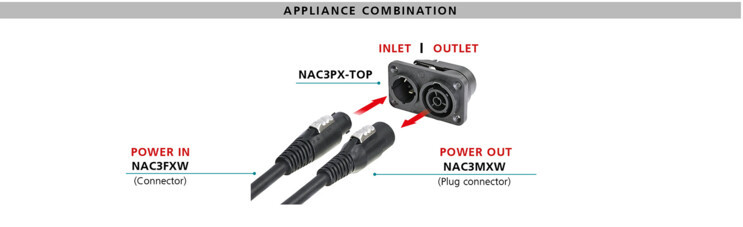

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

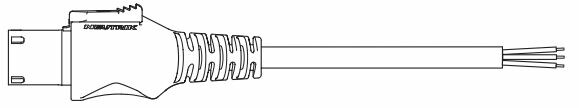

powerCON TRUE1 Power Cord

powerCON TRUE1 Power Cord
