neutrik-fr / Produits / powerCORDS / essential POWER CORDS / powerCON FXX cord set

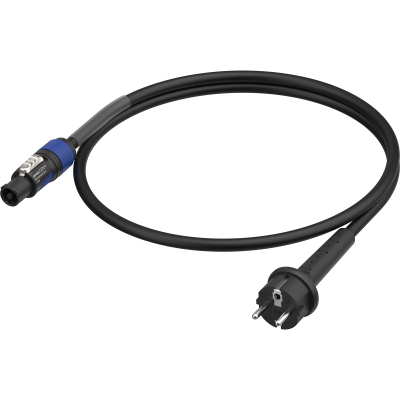

powerCON FXX cord set

Download Data Sheet

*COMING SOON*

Experience full compliance, unwavering reliability, and top-notch safety, all within your budget.
Neutrik Essential series Cords sets.


Features & Benefits
  • Cord sets (powerCON® FXX – Schuko E+F (m) )
  • High quality rubber cables or PVC jacketed power cables
  • Cables with 1.5mm² and 2.5mm² conductor cross section
  • powerCON® connectors (NAC3FXXA / NAC3FXXXB), certified according to the EN60320-1
  • Ruggedized powerCON® connectors with Circuit Breaking Capacity (CBC)
  • IP20
  • Cords sets compliant to the IEC60799
  • Attractive price / value ratio
Downloads
Drawing NKPH MFA3
pdf - 397.44 KB
Drawing NKPH MFA3
dxf - 2.51 MB
Drawing NKPH11 MFA3
pdf - 386.72 KB
Drawing NKPH11 MFA3
dxf - 2.45 MB
Pruduct Folder Essential Power Cords FXX powerCON
pdf - 4.11 MB
BDA 703 V1 - Neutrik Manual EN - Neutrik powerCON FXX CORDS - 202401
pdf - 351.41 KB
EU Declaration of Conformity (PGD)
pdf - 370.15 KB
Product safety

Electrical cables and connectors can pose risk to life and to the appliances. To guarantee the necessary level of protection. The requirements of the low voltage directive (LVD) must be met. The LVD requirements for the connector and cables are described in the EN 60320 and EN 60799 respectively.  Compliance with these norms must be confirmed by CE declaration.



Essential series power cords

Neutrik Essential series power cords stand for full standard-compliance, unwavering reliability, and top-notch safety.

COMPLIANCE MATTERS. The new NEUTRIK powerCON blue / grey XX series connectors proudly carry the IEC-EN 60320-1 certification, complying with all required norms and standards. You can trust that your equipment is in good hands with NEUTRIK.
Full conformity of the power cord to the EU standards is confirmed by the CE declaration acc. to EN60799. The product CE declaration can be found in the Download area below.

SAFETY FIRST. At NEUTRIK, we prioritize your safety above all else. Our cables are rigorously tested and certified to ensure they meet the highest safety standards in the industry.

EXPERIENCE RELIABILITY. These cords guarantee the top-tier reliability. Embrace confidence with our ruggedized powerCON blue/grey XX connectors paired with high-quality cables.

EUROPEAN CRAFTSMANSHIP. Our cables are proudly produced in Europe, adhering to the highest manufacturing standards. European production guarantees precision, quality, and reliability that you can count on.

BEST PRICE. We prioritize high quality, unmatched safety standards, and cost efficiency! With our in-house connectors manufacturing and state-of-the-art, costeffective power cord production site, we bring you affordable prices that redefine value for money.

Article Variations
Article nameDetailsOrder code
NKPH01-MFA3-M0150Cable: 1.5m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036410
NKPH01-MFA3-M0300Cable: 3m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036411
NKPH02-MFA3-M0150Cable: 1.5m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036412
NKPH02-MFA3-M0300Cable: 3m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036413
NKPH11-MFA3-M0150Cable: 1.5m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036420
NKPH11-MFA3-M0300Cable: 3m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / Schuko E+F (m) IP201036421

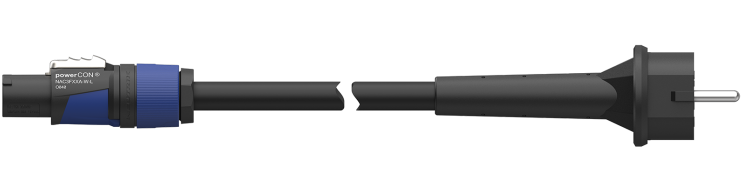

CORD SET, RUBBER CABLE (NKPH01/02-MFA3)

2.0 powerCON_NAC3FXXA-W-L-Schuko2-cable cut_montage side_RGB_WEB

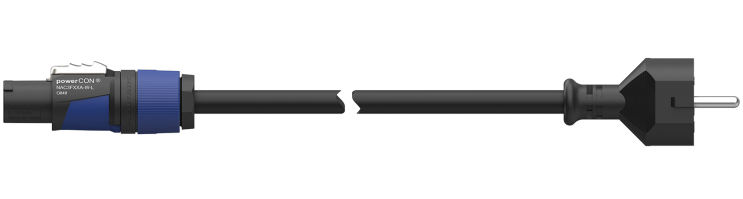

CORD SET, PVC CABLE (NKPH11-MFA3)

2.0 powerCON_NAC3FXXA-W-L-Schuko1-cable cut thin_montage side_RGB_WEB

Partnumber Breakdown

NKPHx-A2A1 - Detail

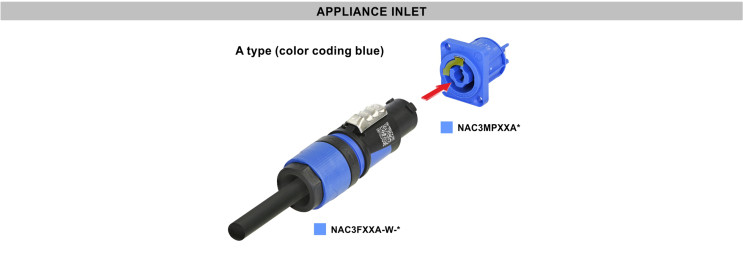

Mating scenario

Mains Cord Mating scenario
