ORP8F
neutrik-fr / Produits / ORP8F

ORP8F

Download Data Sheet

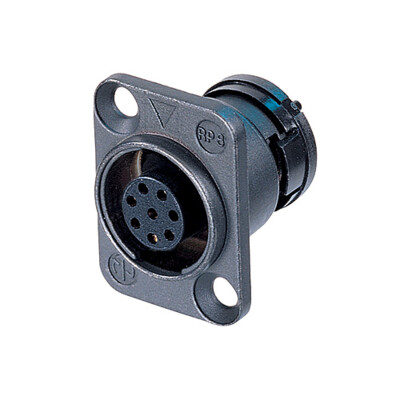

8 pole female chassis connector, solder contacts, 180° coding, black housing

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits
  • Contact configuration can be selected from 1 to 8 contacts.
  • Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
  • Precise and robust all metal housing.
  • Push-pull self-locking system.
Downloads
orp8f-1
pdf - 53.07 KB
orp8f-2
dxf - 165.85 KB
orp8f-3
stp - 144.74 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB

Technical Information

Product
Title ORP8F
Connection Type neutriCON
Gender female
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 0.5 GΩ (after damp heat test IEC 68-2-30)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Cable retention > 50 N
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Locking device Push-Pull
Mounting direction Front mounting
Material
Contact plating 0.3 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn35Pb2)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 HB
Protection class IP 5X
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
