NTP3RC
neutrik-fr / Produits / NTP3RC

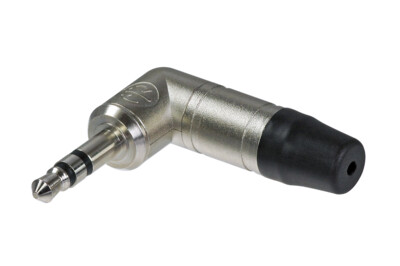

NTP3RC

Download Data Sheet

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Features & Benefits
  • All metal housing - robust and reliable
  • Chuck type cable clamp and rubber gland - excellent cable protection
  • Slim design - space saving
Downloads
st-ntp3rc-1
pdf - 29.67 KB
st-ntp3rc
dxf - 207.48 KB
bda-128---tiny-plug
pdf - 246.72 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NTP3RC
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated voltage <50 V
Mechanical
Cable O.D. 2 - 4.5 mm
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Brass (CuZn39Pb3) + PU, Ni
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 15 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
