NSC3F

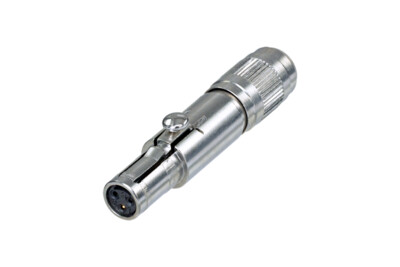

3 pole female cable connector, chuck type strain relief and solder contacts
The nanoCON is the smallest lockable 3 pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention.
Features & Benefits
- World's smallest circular lockable multipole connector
- Robust metal housing with gold plated contacts
- Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
- Pre-mating contact 1
Downloads
Technical Information
| Product | |
|---|---|
| Title | NSC3F |
| Connection Type | nanoCON |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 12 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 2 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | max. 3.4 mm |
| Cable retention | > 20 N |
| Insertion force | < 15 N |
| Lifetime | 500 mating cycles |
| Wiresize | 0.2 mm² / 0.14 mm² (solid / stranded wire) |
| Wiresize | 24 AWG / 26 AWG |
| Locking device | Latch lock |
| Material | |
|---|---|
| Contact plating | 0.5 µm Au |
| Contacts | Brass (CuZn35Pb2) |
| Insert | PETP |
| Shell | CuSn4Pb4Zn4 |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
