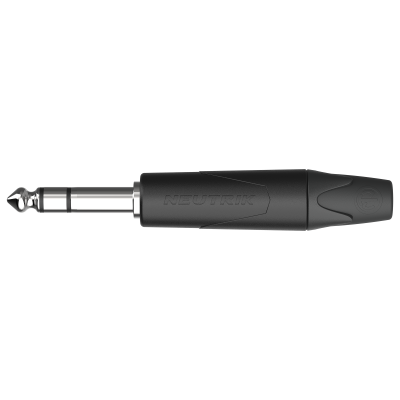

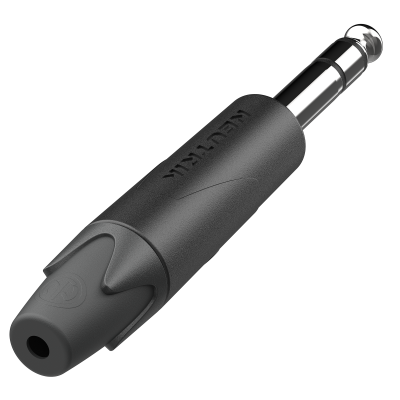

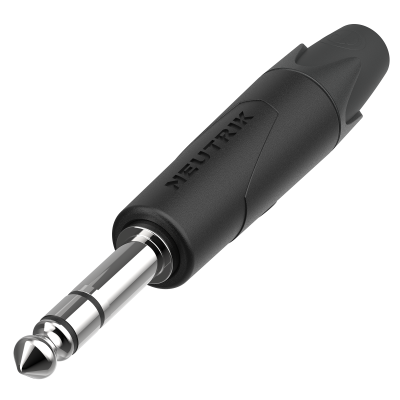

NP3XX-NI-0
Crafted from durable high-tech composite material, our cutting-edge housing design offers a premium tactile experience while significantly reducing the CO2 footprint compared to traditional metal housings.
The NEUTRIK chuck-type strain relief system and precisely engineered one-piece contact tip ensure exceptional performance and unmatched reliability.
Features & Benefits
- Extra slim 1/4" plug for highest packing Density
- Reduced C02 footprint compared to traditional metal housing
- Proven chuck type strain relief for reliable cable retention
- Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
Technical Information
| Product | |
|---|---|
| Title | NP3XX-NI-0 |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
| Material | |
|---|---|
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6) |
| Shell | Polyamide (PA 66) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
