NP3XL

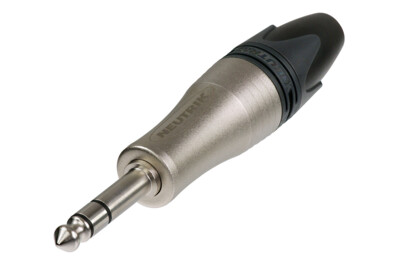

3 pole 1/4'' professional phone plug, up to 10 mm cable O.D.
The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
Features & Benefits
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Ergonomic design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
Technical Information
| Product | |
|---|---|
| Title | NP3XL |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ? mΩ depends on mating connector |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test) |
| Rated current per contact | ? A depends on mating connector |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | ≤ 10 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Environmental | |
|---|---|
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Temperature range | -20 °C to +65 °C |
