timbrePLUG
neutrik-fr / Produits / NP2RX-TIMBRE

NP2RX-TIMBRE

Download Data Sheet

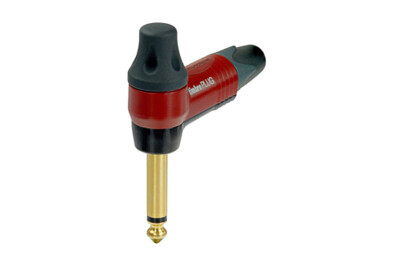

Right angle 1/4'' 2 pole timbre plug

The characteristic sound of a guitar is influenced to a certain extend by the used instrument cable. Particularly the natural electrical property of guitar cables cause the characteristic cable tone. Neutrik’s timbrePLUG provides the possibility to change the timbre of your guitar sound from neutral, clear sound to warm characteristics in 4 steps by turning a knob on the plug. A wide range of new sounds opens.
As brilliant as simple.

Features & Benefits
  • Standard timbre of the cable plus three additional sound characteristics
  • Slim right-angle plug with industry proven and reliable chuck type strain relief
  • Sleek attractive design for convenient handling
  • Gold plug finger, precision machined one piece contacts



    Downloads
    np2rx-timbre
    dxf - 969.52 KB
    np2rx-timbre-1
    pdf - 83.73 KB
    02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
    pdf - 6.12 MB
    bda-308---np2rx-timbre
    pdf - 643.93 KB

    Technical Information

    Product
    Title NP2RX-TIMBRE
    Electrical
    Contact resistance - mΩ depends on mating connector
    Dielectric strength 100 kVdc
    Insulation resistance > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
    Rated current per contact - A depends on mating connector
    Mechanical
    Cable O.D. 4 - 7 mm
    Lifetime 1000 mating cycles
    Wiresize 1 mm²
    Wiresize 18 AWG
    Material
    Insulation Polyamide (PA 6.6 30% GR)
    Environmental
    Temperature range -20°C to +65 °C
    Accessories
    audio
    BPX-*

    Colored boots for PX-Series

    audio
    HTXP

    Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.
