NP2CM-R
neutrik-fr / Produits / NP2CM-R

NP2CM-R

Download Data Sheet

*** DISCONTINUED ***

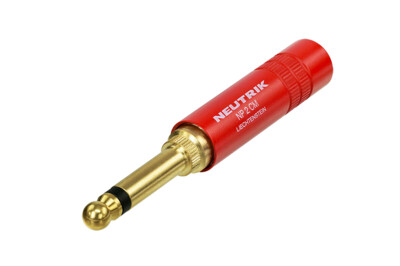

Mono 1/4" MIL-plug (MIL-P-642/4), red metal housing, brass contacts

Professional phone plugs in MIL type design according MIL standard MIL-P-642/*. They are featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel to meet the high requirements for military communication equipments. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.

Features & Benefits
  • Mono 1/4" MIL-plug (MIL-P-642/4)
  • One-piece Tip conductor ensures secure conductivity
  • Metal shell and chuck type cable retention - robust and dependable
Downloads
np3cm-r-2
pdf - 351.39 KB
np3cm-r-3
dxf - 19.75 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NP2CM-R
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Brass
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Brass (CuZn39Pb3)
Shell plating Red coated
Strain relief Polyacetal (POM)
Environmental
Standard compliance MIL-P-642/4
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
