NLT8FXX
neutrik-fr / Produits / Connecteurs haut-parleur speakON® / Fiche speakON® / STXX Series / NLT8FXX

NLT8FXX

Download Data Sheet

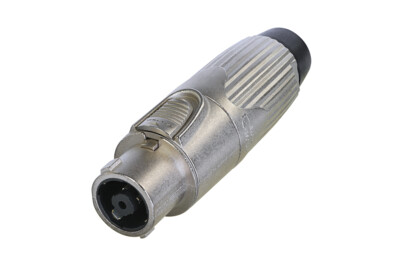

8 pole female cable connector, metal housing, chuck type strain relief, solder contacts

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Current rating 30 A rms
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Precise “Quick Lock” system
  • Compatible with complete speakON 8 pole product series
Downloads
st-nlt8fxx
pdf - 146.11 KB
st-nlt8fxx
dxf - 1.53 MB
NLT8FXX
stp - 6.7 MB
BDA 615 V2 - speakON STXX Series NLT8FXX
pdf - 1.32 MB
Certificate_CB_NL-73940
pdf - 246.43 KB

Technical Information

Product
Title NLT8FXX
Gender female
Electrical
Contact resistance < 2 mΩ
Dielectric strength 1.5 kVac
Insulation resistance > 0.1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous (acc. to IEC 61984)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)!
Mechanical
Cable O.D. 8 - 20 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 1.5 mm² - 6 mm²
Wiresize 10 AWG
Termination Solder contacts
Locking device Quick Lock (latch)
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, Nickel plated
Insert Polyamide (PA 6.6)
Locking element Zinc diecast
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20
