NLT8FP-BAG
neutrik-fr / Produits / NLT8FP-BAG

NLT8FP-BAG

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NLT8FPXX-BAG

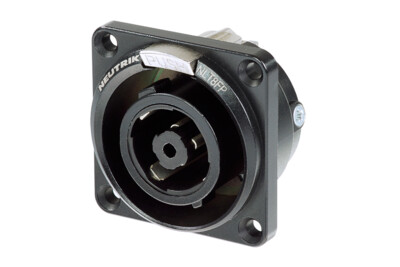

8-pole female chassis, black-chrome metal housing, solder contacts

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits
  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
  • Uses precise “Quick Lock” system
  • Mates with all currently available speakON products
Downloads
st-nlt8fp
dxf - 1.78 MB
st-nlt8fp-1
pdf - 179.62 KB
speakon-wiring-suggestion
pdf - 342.87 KB
speakon-flange-and-fastening-layout
pdf - 130.14 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
À gauche
UL Certificate (ECBT2.E135070) cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title NLT8FP-BAG
Connection Type speakON
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 3 kVdc (peak)
Insulation resistance > 10 GΩ
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Locking device Quick Lock
Chassis shape square G-size flange
Layout four thru holes
Material
Contact plating 4 µm Ag
Insert Polyamide (PA 6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1) black chrome
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 HB
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
