NLT4MXX
neutrik-fr / Produits / Connecteurs haut-parleur speakON® / Fiche speakON® / NLT4MXX

NLT4MXX

Download Data Sheet

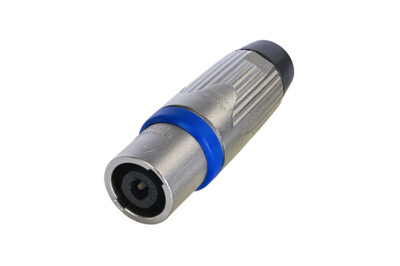

4 pole male cable connector, metal housing, chuck type strain relief

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits
  • IEC 61984 certified, IEC 62368-1 compliant
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
Downloads
ST-NLT4MXX
pdf - 69.49 KB
ST-NLT4MXX
dxf - 452.97 KB
nlt4mxx
stp - 3.02 MB
Assembly Instruction speakON TXX Series
pdf - 2.45 MB
CB Certificate SE-103879
pdf - 68.98 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
Links
Intertek Certificate UL-1977 REC Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title NLT4MXX
Gender male
Electrical
Contact resistance < 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 9 - 16 mm
Lifetime > 5000 mating cycles
Wiresize 6 mm²
Wiresize 10 AWG
Termination Solder contacts
Locking device Quick Lock
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, Ni plated
Insert Polyamide (PA 66)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 54 (mated condition)
Solderability Complies with IEC68-2-20
