NLT4MPXX
neutrik-fr / Produits / Connecteurs haut-parleur speakON® / Chassis speakON® / STXX Series / NLT4MPXX

NLT4MPXX

Download Data Sheet

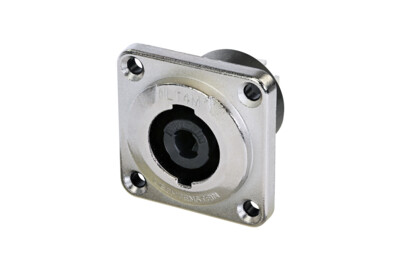

4 pole male chassis connector, metal housing, solder contacts or ¼“ flat tabs, countersunk thru holes

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits
  • IEC 61984 certified, IEC 62368-1 compliant
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
Downloads
NLT4MPXX
stp - 2.36 MB
NLT4MPXX
pdf - 182.54 KB
ST-NLT4MPXX
dxf - 349.49 KB
CB Certificate SE-103879
pdf - 68.98 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
Links
Intertek Certificate UL-1977 REC Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title NLT4MPXX
Gender male
Electrical
Contact resistance < 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination ¼" flat tabs
Locking device Quick Lock
Mounting direction Rear / front mounting
Chassis shape square G-size flange
Layout four thru holes
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, Ni plated
Insert Polyamide (PA 66)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 54 (mated condition)
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

audio
SCNLT

Gasket for speakON G-size housings for an airtight connection between chassis and frontpanel (also suitable for Amphenol EP cutouts)
