NL8MPRXX
neutrik-fr / Produits / NL8MPRXX

NL8MPRXX

Download Data Sheet

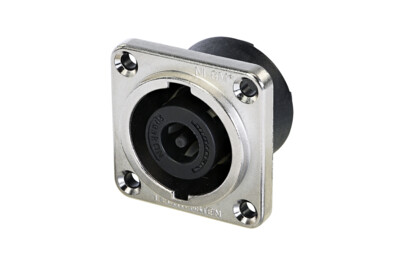

Connecteur Speakon châssis mâle à 8 pôles, boîtier métallique carré de taille G, trous traversants fraisés, cosses plates 3/16" .

Ce connecteur est accepté dans les équipements audio conçus selon la norme IEC 62368-1 en raison de sa certification de composant selon la norme IEC 61984.

Les chassis speakON sont des connecteurs de châssis standard pour les interconnexions haut-parleur/amplificateur et disposent d'un système de verrouillage métallique unique, n'établissant le contact qu'une fois complètement verrouillé.

Les prises sont robustes, polyvalentes et faciles à raccorder.

Caractéristiques & avantages
  • Certifié IEC 61984, donc accepté comme composant d'équipement selon. selon CEI 62368-1
  • Courant nominal 25 A rms
  • Corps métallique extrêmement robuste et matériau V-0 renforcé de verre pour les environnements difficiles et exigeants
  •  Guidage précis pour un accouplement sécurisé
Downloads
st-nl8mprxx
pdf - 78.85 KB
st-nl8mprxx
dxf - 607.92 KB
nl8mprxx
stp - 4.81 MB
BDA 613 V1 - speakON XX Series - NL8MPRXX
pdf - 590.88 KB
Certificate_CB_NL-73940
pdf - 246.43 KB
Certificate ETL 105487593ATL-001A (2024-08-22)
pdf - 92.47 KB

Technical Information

Product
Title NL8MPRXX
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 1.5 kVac
Insulation resistance > 0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (acc. to IEC 61984)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)!
Mechanical
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs
Locking device Quick Lock
Mounting direction Rear / front mounting
Chassis shape square G-size flange
Layout four thru holes
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, Nickel plated
Insert Polyamide (PA 6.6)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Accessories
NDL8

The dummyPLUG NDL8 for all 8 pole male Neutrik speakON chassis connectors enables you to simplify cabling.

audio
SCNLT

Gasket for speakON G-size housings for an airtight connection between chassis and frontpanel (also suitable for Amphenol EP cutouts)

NLFASTON

Faston receptacle for tabs with 'positive lock', Tab Fit 4.75 x 0.51 mm (0.187 x 0.02 in), Equivalent to AMP, pack of 100 pcs
