NKUSB
neutrik-fr / Produits / NKUSB-*

NKUSB-*

Download Data Sheet

The USB 2.0 patch cables with overmolded flex relief and rugged metal cable carrier fit and lock with NAUSB-W-*. One cable end offers an USB connector type A, the other side offers a USB connector type B.

* The cables are available in 1 m, 3 m and 5 m cable length.

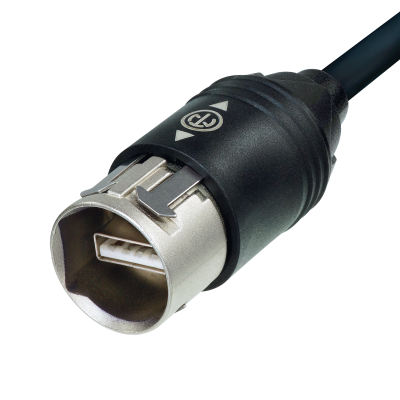

NKUSB-* side 1 with USB type A NKUSB-* side 2 with USB type B
Features & Benefits
  • USB 2.0 compliant - data rate up to 480 MBit/s
  • IP65 ingress protection in mated condition with NAUSB-* and SCDP-* sealing gasket
  • Push Pull mating design provides secure locking system if mated with NAUSB-W*
  • Shielded connection - high noise immunity and EMI protection
  • Removable rugged diecast cable carrier
  • Mates with conventional USB receptacles and NAUSB if cable carrier is removed
Downloads
nkusb-1
pdf - 53.39 KB
nkusb-1-1
dxf - 523.3 KB
multimedia-series-ip-65-test-report
pdf - 2.58 MB

Technical Information

Product
Title NKUSB-*
Gender male
Mechanical
Wiresize
Lifetime > 1000 mating cycles
Locking device Push-Pull
Overall cable diameter 5,3 mm
Material
Contact plating Au
Contacts Bronze (CuSn)
Insert PVC
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Cable jacket material PVC
Environmental
Flammability UL 94 V-0
Standard compliance USB 2.0
Temperature range -25 °C to +85 °C
