NKHDMI
neutrik-fr / Produits / NKHDMI-*

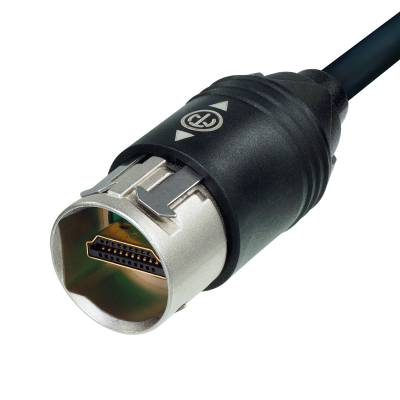

NKHDMI-*

Download Data Sheet

The HDMI patch cables with overmolded flex relief and rugged metal cable carrier fit and lock with NAHDMI-W-*.

The cables are available in 0.6 m, 1 m, 3 m, 5 m, 7 m, 8 m and 10 m cable length.

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Features & Benefits
  • Data rate up to 18 GBit/s
  • IP65 ingress protection in mated condition with NAHDMI-* and SCDP-* sealing gasket
  • Push Pull mating design provides secure locking system if mated with NAHDMI-W*
  • Shielded connection - high noise immunity and EMI protection
  • Removable rugged diecast cable carrier
  • Mates with conventional HDMI receptacles if cable carrier is removed
Downloads
nkhdmi-1
pdf - 53.53 KB
nkhdmi-1-1
dxf - 530.37 KB
multimedia-series-ip-65-test-report
pdf - 2.58 MB

Technical Information

Product
Title NKHDMI-*
Gender male
Mechanical
Wiresize
Minimum bending radius allowed 40 mm
Lifetime > 1000 mating cycles
Locking device Push-Pull
Overall cable diameter 6,5 mm
Material
Contact plating Au
Contacts Bronze (CuSn)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Cable jacket material PVC
Environmental
Flammability UL 94 V-0
Standard compliance HDMI 2.0 specifications for length up to 3 m incl.
HDMI 1.4 specifications for length > 3 m
Temperature range -25 °C to +85 °C
Article Variants

Article name

Length

Order code

NKHDMI-0.6

0.6 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-0.6

NKHDMI-1

1 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-1

NKHDMI-3

3 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-3

NKHDMI-5

5 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-5

NKHDMI-7

7 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-7

NKHDMI-8

8 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-8

NKHDMI-10

10 m HDMI Cable with 2x Male HDMI Connector

NKHDMI-10
