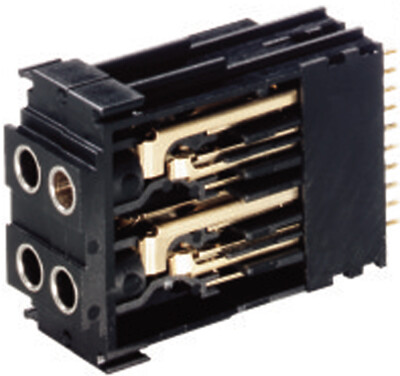

NJ3TTA-4-I

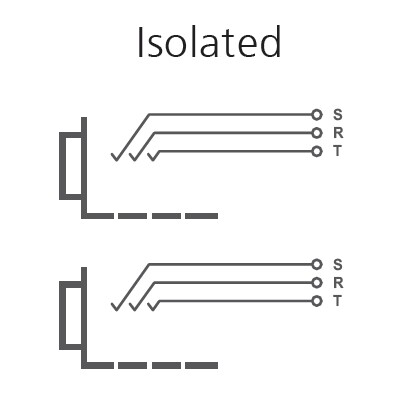

Blocks of 2 pre-configured jack-pairs, isolated, cover ident color: orange
Technical Information
| Product | |
|---|---|
| Title | NJ3TTA-4-I |
| Connection Type | Patch Panel |
| Electrical | |
|---|---|
| Signal Type | Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s) |
| Contact resistance | 20 mΩ |
| Contact resistance | < 25 mΩ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Mechanical | |
|---|---|
| Insertion force | < 10 N |
| Withdrawal force | > 8 N |
| Lifetime | > 5000 mating cycles |
| Wiresize | |
| Material | |
|---|---|
| Contact plating | TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks) |
| Contacts | Bronze (CuSn6) (Jacks) |
| Shell | PA 66 blend (Jacks) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
