NCJ6FE-H-0

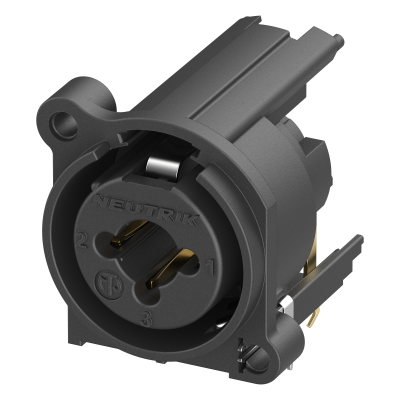

Introducing Combo E, the new NEUTRIK Combo connector. The Combo E features a flat front face providing a sleek, streamlined appearance. The housing is configurable with two different locking versions (metal latch or retention spring). Equipped with gold-plated contacts, Combo E delivers excellent conductivity and resistance to wear. Due to the UL94 V0 material used, flame retardancy is ensured. The vertical design, with a 24mm PCB distance, optimizes space in tight configurations, making it perfect for compact, high-performance applications.
Features & Benefits
- 24mm Panel distance
- Flat front face
- Front panel cut-out compatible with Neutrik XLR A Series and Combo A Series
- Combined 3 pole XLR receptacle and 1/4"" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
- Two Connectors in one housing - substantial cost, material, space and labour saving
- Very low conductor capacitance - ideal for digital audio
Downloads
Technical Information
| Product | |
|---|---|
| Title | NCJ6FE-H-0 |
| Product family | Combo |
| Connection type | chassis connector |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance XLR | ≤ 10 mΩ |
| Contact resistance JACK | ≤ 20 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact XLR | 3 A |
| Rated current per contact JACK | 3 A |
| Rated voltage | < 50 Vac |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | min. 1000 mating cycles |
| Panel thickness | 1mm (0.04 ") - 3mm (0.12") |
| Locking device | retention spring |
| Wiring | Horizontal PCB mount |
| Mounting direction | Rear mounting |
| Mounting screw | A-screw-1-8 |
| Material | |
|---|---|
| Contact plating | Gold plating |
| Contacts | Bronze |
| Insert | Polyamide (PA66) |
| Locking element | Steel |
| Environmental | |
|---|---|
| Flammability | acc. to UL 94 V-0 |
| Solderability | Complies with IEC 60068-2-20 |
| Temperatur | -30 °C to +80 °C |
