NC4MDX-TOP
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / TOP Series / NC4MDX-TOP

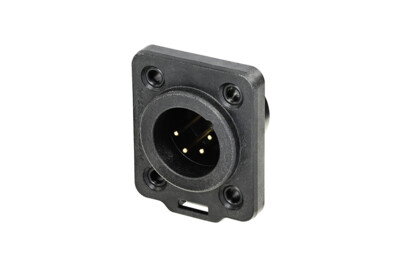

NC4MDX-TOP

Download Data Sheet

4 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP)

The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • High impact UV-resistant materials
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • IEC 61984 certified
Downloads
20003453_-_NC4MDX-TOP
pdf - 237.48 KB
30009721_-_NC4MDX-TOP
stp - 1.93 MB
BDA 631 V1 - XLR Chassis TOP - NC4FDX-TOP NC4MDX-TOP and SCxDX-TOP
pdf - 469.73 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB

Technical Information

Product
Title NC4MDX-TOP
Connection Type XLR
Gender Male
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating Gold (Au) over Nickel (NI)
Contacts Brass
Insert Polyamide
Locking element Stainless steel
Gasket TPE
Shell Polyamide
Environmental
Flammability acc. to UL94 V-0
Standard compliance IEC 61076-2-103
Protection class acc. IEC 60529 IP65
Solderability acc. to IEC 60068-2-20
Temperature range -30 °C to +80 °C
Pollution degree acc. to IEC 60664-1 II
Accessories
SCMDX-TOP

Sealing Cover for XLR TOP male Chassis NC3MDX-TOP and NC5MDX-TOP​.
