NC4FDM3-H-BAG-1
neutrik-fr / Produits / NC4FDM3-H-BAG-1

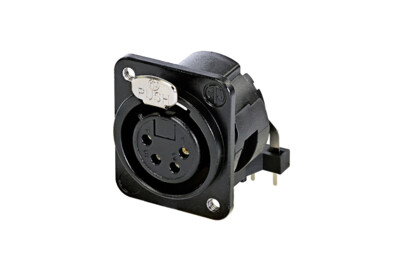

NC4FDM3-H-BAG-1

Download Data Sheet

4 pole female receptacle, horizontal PCB mount, black housing, silver contacts, M3 mounting holes

Features a compact all metal housing with an ingenious duplex ground contact, which offers an excellent RF protection and shielding.

Insert is NOT removable from shell.

Features & Benefits
  • The all metal housing offers the best RF protection and an electromagnetic shielding.
  • Duplex ground contact for an excellent contact integrity between chassis and cable connector
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
  • Insert is NOT removable from shell.
  • PCB mount termination
Downloads
st-nc4fdm3-h-1
pdf - 76.7 KB
st-nc4fdm3-h-1
dxf - 570.03 KB
nc4fdm3-h-1
stp - 2.72 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC4FDM3-H-BAG-1
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1.5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape D
Mounting Mounting holes with M3 threads
Material
Contact plating Ag
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V0
Temperature range -30 °C to +80 °C
