NC3MXX-B

NC3MXX-B

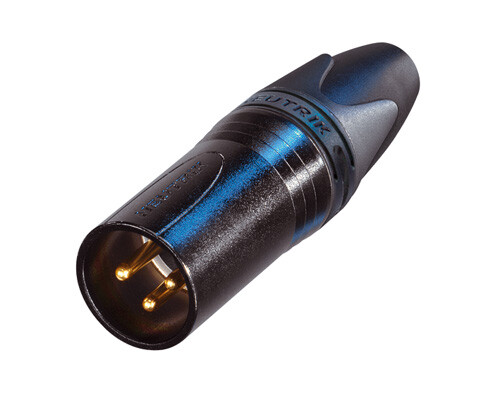

3 pole male cable connector with black metal housing and gold contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Download Data Sheet
Le choix des thèmes
Features & Benefits Downloads Informations Techniques Accessoires
Download Data Sheet

Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Downloads

  • Drawing NC3MXX
  • Drawing NC3MXX
  • Assembly Instruction - XLR XX Series
  • UL Certificate of Compliance
  • Product Guide - Section XLR

Links

  • UL Certificate (ECBT2.E135070)
  • cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title NC3MXX-B
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Accessories

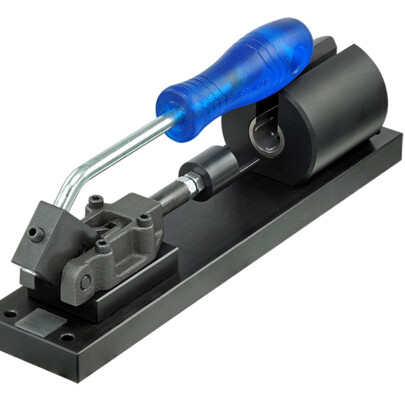

BTXX
BTXX

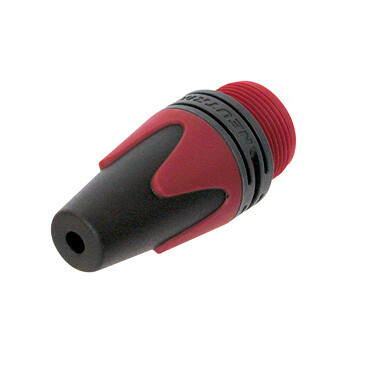

BXX-2
BXX-*

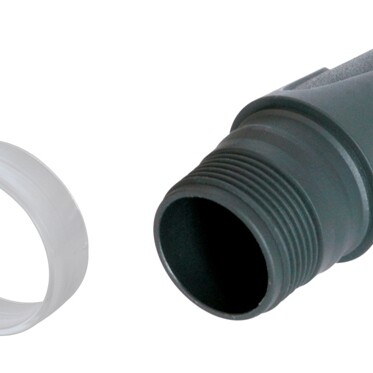

BXX-CR
BXX-CR

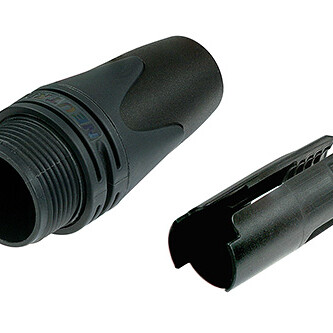

BXX-14
BXX-14

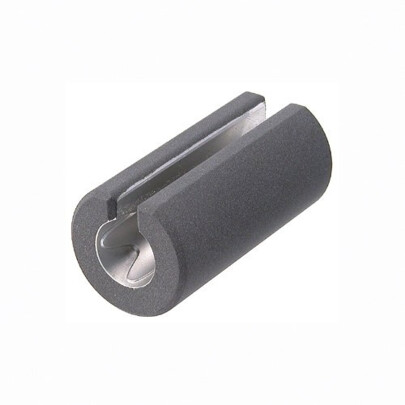

HTX
HTXP

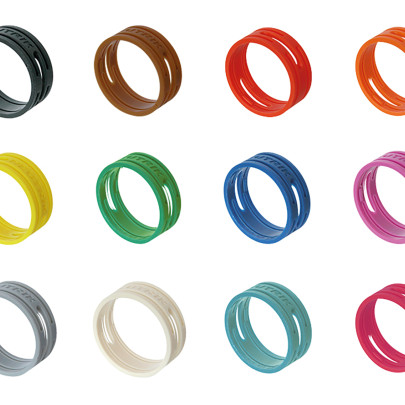

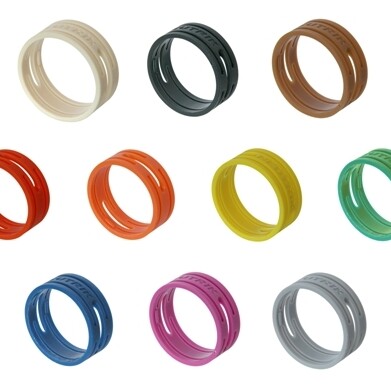

XXR
XXR-*

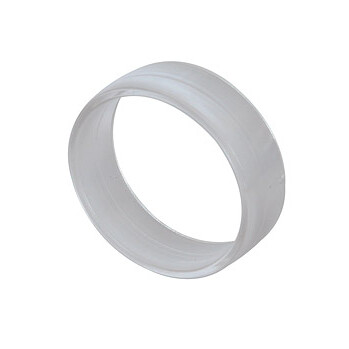

XXCR
XXCR
