NC3MAH-LR
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / A Series / NC3MAH-LR

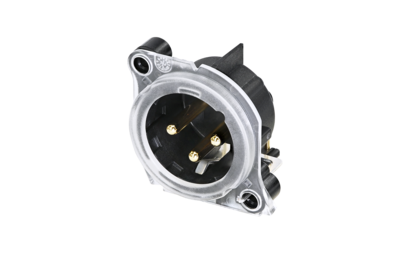

NC3MAH-LR

Download Data Sheet

3 pole male XLR receptacle with Neutrik unique Halo feature and asymmetric non-metallic push.

Grounding: separate ground contact to mating connector shell and front panel. Horizontal PCB mount.

More than a connector, the `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector, integrating the completely new, patented light ring and asymmetric non-metallic push elements.

The all-plastic A-Series offers the most space saving and cost effective design. Tulip type contacts with hard gold plating and polished contact areas. Light ring for status indication, etc. Improved EMC and ESD performance via asymmetric non-metallic push.

Features & Benefits
  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Polished contact areas and hard gold plating
  • Housing flammability UL94 V-0
  • Light ring offers innovative, forward-looking alternative to light pipes
  • Standard cutout / no additional holes for light pipes required
  • Improved visibility compared to light pipes
  • Multiple colors available via left- and right-side SMD LEDs
  • Attractive signaling and design element
  • Compound material improves ESD performance
Downloads
20003648_-_NC3MAH-LR
pdf - 203.24 KB
NC3MAH-LR
dxf - 889.92 KB
30010215_-_NC3MAH-LR
stp - 3.71 MB
BDA 647 V1 - APPLICATION NOTES FOR LIGHT RING (HALO) XLR CHASSIS CONNECTORS
pdf - 1.69 MB

Technical Information

Product
Title NC3MAH-LR
Connection Type XLR
Number of contacts 3
Gender Male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 6A
Rated voltage 50 V
Grounding options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape A
Mechanical endurance COC
Material
Contacts Bronze
Insert Polyamide
Environmental
Flammability according to UL 94 V-0
Standard compliance considered during design IEC 61076-2-103
Protection class according to IEC 60529 IP 40
Pollution degree according to IEC 60664-1 Pollution degree 2
Solderability Complies with IEC 60068-2-20
Temperature range -30 °C to +80 °C
Maximum operating temperature +80 °C
