NC3FXX
neutrik-fr / Produits / NC3FXX

NC3FXX

Download Data Sheet

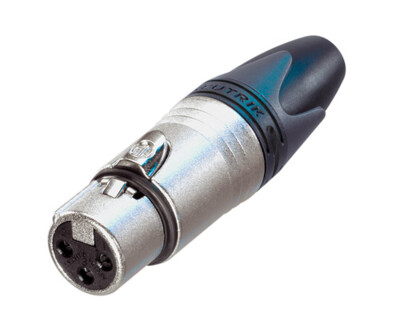

Connecteur de câble femelle à 3 pôles avec boîtier en nickel et contacts en argent.

La nouvelle génération de la norme mondialement acceptée de connecteurs de câbles XLR. Le successeur de la série X offre plusieurs nouvelles fonctionnalités qui la rendent plus fiable, plus facile à assembler et améliore l'intégrité des contacts ainsi que la resistance à la traction des câbles.

Caractéristiques & avantages
  • Conception de cage unique de contact femelle pour une faible résistance de contact et une haute intégrité
  • Le contact femelle incorpore une barrière de soudure pour empêcher la soudure de pénétrer dans la zone de contact de contact
  • Connecteur femelle avec loquet en métal solide amélioré, plus grand et plus facile à manipuler
  • Contacts à ressort de masse supplémentaires pour une meilleure continuité de masse de la coque La resistance à la traction améliorée de type mandrin fournit une force de traction plus élevée et rend l'assemblage plus facile et plus rapide
  • La gaine avec presse-étoupe en polyuréthane offre une protection élevée contre les contraintes de flexion
  • bagues et manchons colorés disponibles pour le codage ou l'identification
  • Design élégant et ergonomique - précieux et pratique Coque robuste en zinc moulé sous pression, durable et fiable
  • Le filetage interne sur la coque est bien protégé contre tout dommage
Downloads
nc3fxx-1
pdf - 162.11 KB
nc3fxx-2
dxf - 1.74 MB
NC3FXX
stp - 3.49 MB
xlr-xx-series
pdf - 317.36 KB
Certificate_CB_SE-105346M1
pdf - 281.33 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC3FXX
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
BTXX

Speed boot assembly tool to press XX boot onto shell.

audio
BXX-*

Colored bushings

audio
BXX-CR

Black bushing with clear coding ring

audio
BXX-14

Large bushing with chuck type strain relief (8 mm - 10 mm cable O.D.).

audio
HTXP

Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

audio
XXR-*

Colored coding rings. Color ring can be changed without unsoldering insert.

audio
XXCR

Transparent coding ring which allows an individual customized labeling, branding, coding etc.

audio
HTX

Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
