NC10MDX-TOP
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / 8 + 2 pole Series / NC10MDX-TOP

NC10MDX-TOP

Download Data Sheet

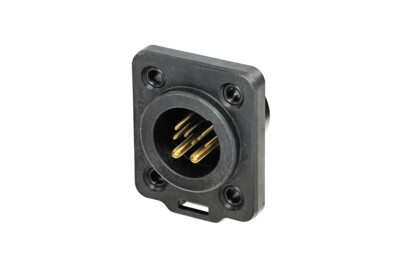

8+2 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP)

The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Superior ruggedness compared to RJ45 type connectors
  • High impact UV-resistant materials
  • Outdoor protection according to IP65. Maintains sealing when in use and when disconnected
  • D-size housing provides installation compatibility with industry standard D mounting dimensions
  • IEC 61984 certified
  • Receptacle with duplex ground contact for excellent signal integrity
Downloads
20003529_-_NC10MDX-TOP
pdf - 267.87 KB
30009730_-_NC10MDX-TOP
stp - 2.8 MB
BDA 553 V4 - XLR Chassis TOP - NCxFDX-TOP NCxMDX-TOP SCxDX-TOP
pdf - 1.42 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB

Technical Information

Product
Title NC10MDX-TOP
Connection Type XLR
Gender Male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1 kVdc
Insulation resistance > 10 GΩ (initial)
Number of electronical contacts 8 + 2
Rated current per contact 16 A (power pins), 3 A (data pins)
Rated voltage 50 V
Cable shield - shell connection choosable
Transmission performance CAT 5e
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Solder contacts
Wiring Size <2.5 mm²/<1 mm²
8 x 24 AWG + 2 x 16AWG
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating Gold (Au) over Nickel (Ni)
Contacts Brass
Insert Polyamide
Locking element Stainless steel
Gasket TPE
Shell Polyamide
Environmental
Flammability acc. to UL94 V-0
Standard compliance IEC 61076-2-103
Protection class acc. IEC 60529 IP65
Solderability acc. IEC 60068-2-20
Temperature range -30 °C to +80 °C
Pollution degree acc. to IEC 60664-1 II
Accessories
SCMDX-TOP

Sealing Cover for XLR TOP male Chassis NC3MDX-TOP and NC5MDX-TOP​.
