NC10FDX-TOP
neutrik-fr / Produits / Connecteurs XLR / Chassis XLR / 8 + 2 pole Series / NC10FDX-TOP

NC10FDX-TOP

Download Data Sheet

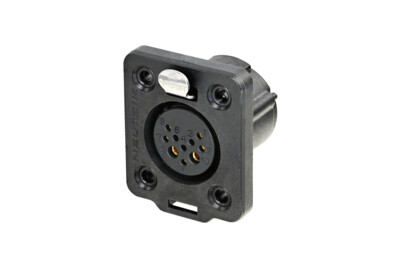

8+2 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP)

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Gold contacts are standard.

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment.
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • High impact UV-resistant materials.
  • D-size housing provides installation compatibility with industry standard D mounting dimensions.
  • Receptacle with duplex ground contact for excellent signal integrity.
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities.
  • Superior ruggedness compared to RJ45 type connectors.
  • IEC 61984 certified
Downloads
20003527_-_NC10FDX-TOP
pdf - 419.04 KB
30009731_-_NC10FDX-TOP
stp - 2.81 MB
BDA 553 V4 - XLR Chassis TOP - NCxFDX-TOP NCxMDX-TOP SCxDX-TOP
pdf - 1.42 MB

Technical Information

Product
Title NC10FDX-TOP
Connection type XLR
Gender Female
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1 kVdc
Insulation resistance > 10 GΩ (initial)
Number of electronical contacts 8 + 2
Rated current per contact 16 A (power pins), 3 A (data pins)
Rated voltage 50 V
Cable shield - shell connection choosable
Transmission performance CAT 5e
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Solder contacts
Wiring Size <2.5 mm²/<1 mm²
(8 x 24 AWG + 2 x 16AWG)
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating Au over Ni
Contacts Brass
Insert Polyamide
Locking element Stainless steel
Gasket TPE
Shell Polyamide
Environmental
Flammability acc. to UL94 V-0
Standard compliance IEC 61076-2-103
Protection class according to IEC 60529 IP 65
Solderability acc. to IEC 60068-2-20
Temperature range -30 °C to +80 °C
Pollution degree acc. to IEC 60664-1 II
Accessoires
SCFDX-TOP

Sealing Cover for XLR TOP female Chassis NC3FDX-TOP and NC5FDX-TOP​.
