NBB75FG

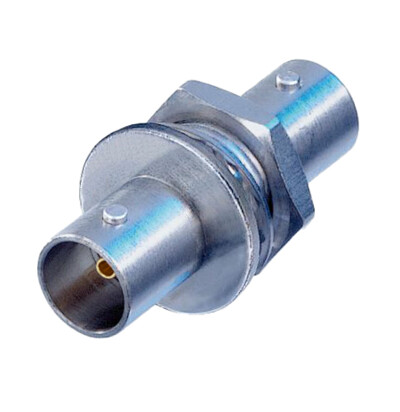

Grounded BNC bulkhead for panel mount, feedthrough, grounded
Neutrik's BNC bulkhead for panel mount offer a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Features & Benefits
- Gold plated cage type center contact
- True 75 Ω design meets the stringent HD & UHD requirements
- Grounded panel mount
Downloads
Technical Information
| Product | |
|---|---|
| Title | NBB75FG |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
|---|---|
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz |
| Mechanical | |
|---|---|
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Mounting direction | Front mounting |
| Chassis shape | 12.7 mm |
| Material | |
|---|---|
| Contacts | Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy® |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +85 °C |
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
