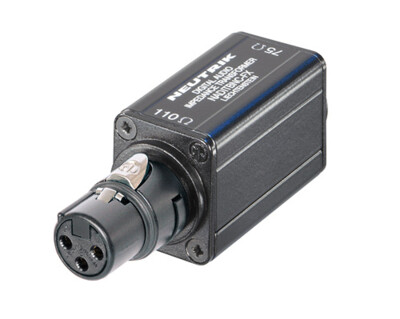

NADITBNC-FX
Female XLR cable end 110 Ω input - female BNC 75 Ω output. Interface balanced and coaxial lines.
Features & Benefits
- Allow long cable runs for digital audio signals via low attenuation coax lines
- Match balanced to coaxial lines
- Match impedances 110 Ω to 75 Ω
- Simple to use, passive units
Downloads
Technical Information
| Product | |
|---|---|
| Title | NADITBNC-FX |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
|---|---|
| Frequencyrange | 0.1 - 6 MHz |
| Rated voltage | ≤ 5 V p-p |
| VSWR | < 1.1 |
| Return loss | > 26.4 dB |
| Insertion Loss | < 0.3 dB @ 0.1 MHz to 10 MHz |
| Mechanical | |
|---|---|
| Wiresize | |
