NAC3MMXX_persp front_RGB_WEB NAC3MMXX_persp back_RGB_WEB

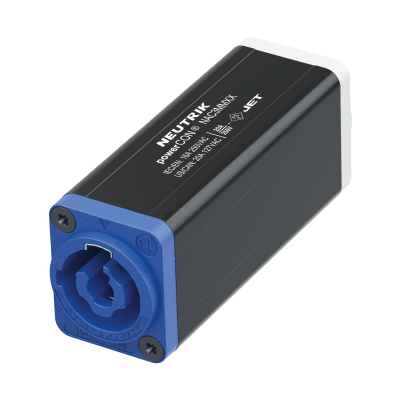

NAC3MMXX_persp front_RGB_WEB

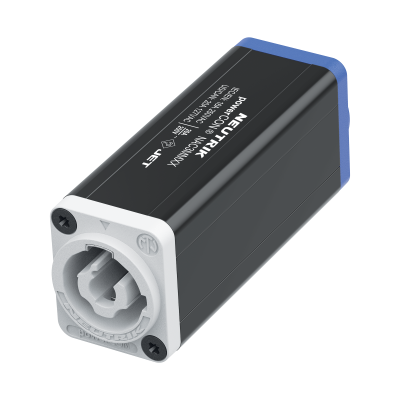

NAC3MMXX_persp back_RGB_WEB
1/2
neutrik-fr / Produits / powerCON® / powerCON® Accessories / NAC3MMXX

NAC3MMXX

Download Data Sheet

CBC powerCON coupler for linking powercables using IEC 60320-1 compliant NEUTRIK powerCON XX series receptacles for power in (NAC3MPXXA) and power out (NAC3MPXXB).

The powerCON XX series receptacles (NAC3MPXXA, NAC3MPXXB) are connectors with breaking capacity (CBC) certified according to IEC 60320-1.
They are fully compliant to the device standard IEC 62368-1, due to its component.

For more information about the connectors, see: NAC3MPXXA  & NAC3MPXXB

Features & Benefits
  • Breaking capacity (CBC)
  • Twist lock system
  • Rugged design
Downloads
30009274_A_NAC3MMXX
stp - 2.73 MB
20002437_A_NAC3MMXX
pdf - 362.4 KB
20002437_A_NAC3MMXX
dxf - 1.48 MB

Technical Information

Product
Title NAC3MMXX
Connection Type Adapter
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 60320-1 : 20 A 127 V AC
Mechanical
Lifetime > 1000 mating cycles
Locking device Twist Lock
Material
Contact plating Ag
Locking element Stainless steel
Shell Aluminium
Contacts Copper Alloy
Environmental
Flammability UL 94 V-0
Protection class IP 20 (mated)
Temperature range -30 °C to +80 °C
