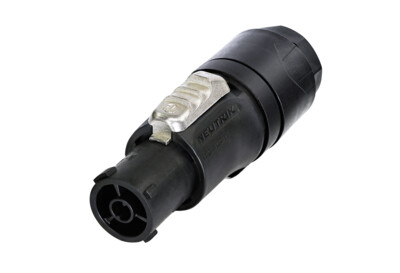

NAC3FX-W-TOP-L

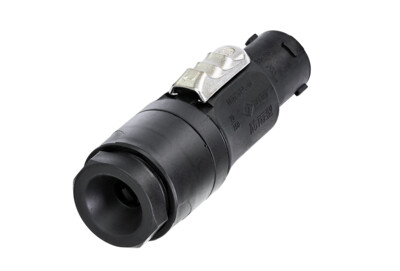

NAC3FX-W-TOP-L_Rear

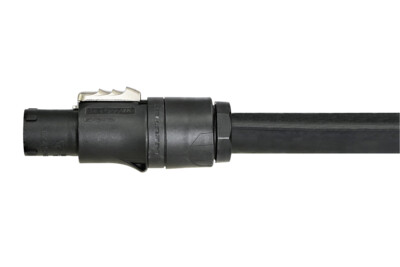

NAC3FX-W-TOP-L_Side_view_with_Cable_SOOW

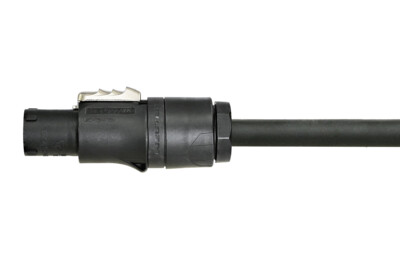

NAC3FX-W-TOP-L_Side_view_with_Cable_H07RN-F

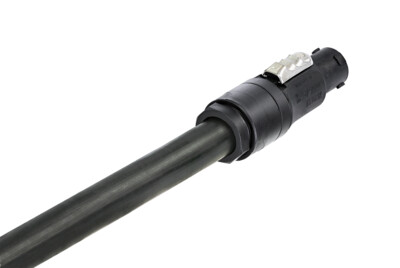

NAC3FX-W-TOP-L_Rear_with_Cable_SOOW
1/5
neutrik-fr / Produits / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 Cable Connectors / NAC3FX-W-TOP-L

NAC3FX-W-TOP-L

Download Data Sheet

PHASE OUT
direct replacement / successor: NAC3F-TRUE1-L



Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.

Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.

Features & Benefits
  • IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and approved for outdoor protection
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable cable retention
  • TOP True Outdoor Protection
  • Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
  • Superior NEUTRIK quality standard
Downloads
NAC3FX-W-TOP-L
pdf - 809.24 KB
NAC3FX-W-TOP-L
dxf - 4.02 MB
NAC3FX-W-TOP-L
stp - 15.39 MB
BDA 624 V5 - powerCON Cable Connector Female NAC3FX-W-TOP-L
pdf - 4.88 MB
Application Note TRUE1-TOP-L V2 20220128
pdf - 102.47 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
BDA 556 V3 - powerCON TRUE1 TOP Cable Connector - Operating Instruction
pdf - 4.93 MB
BDA 557 V3 - powerCON TRUE1 TOP Power IN - Operating Instruction
pdf - 4.98 MB
BDA 559 V3 - powerCON TRUE1 TOP SAFETY NOTICE
pdf - 5.05 MB
VDE Certificate ENEC10VDE NAC3FX-W-TOP NAC3FX-W-TOP-L
pdf - 310.98 KB

Technical Information

Product
Title NAC3FX-W-TOP-L
Connector series powerCON TRUE1 TOP
Electrical
Dieletric strength 2.8 kVac
Insulation resistance > 0.1 GΩ
Number of electronical contacts 2 + PE
Rating Europe IEC EN 60320-1: 16 A 250 V AC
Certified with cable types: H07RN-F3G2.5
Rating USA UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
Certified with cable types:
- SOOW 12/3, SOOW 14/3
- SJOOW 12/3
Mechanical
Cable O.D. 10 – 16 mm (0.39 – 0.63 inches)
Lifetime Typically 5’000 mating cycles
Wire size (mm²) 2.5 mm²
Wire size (AWG) 14 – 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type 4 (mated)
Temperature range -30 °C to +80 °C
Accessories
HTLACB

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

HTLACA View 2.png
HTLACA

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

powerCON_SCF-TRUE1 TOP_persp front_RGB_WEB.png
SCF-TRUE1-01

Ruggedized sealing cover (female) with ergonomic design for powerCON TRUE1 TOP cable connectors

Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB.png
SCNAC-FX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.

Assembly

Features powerCON® TRUE1® L

Product related questions and answers
QuestionAnswer
How are the certifications different to the current version NAC3*X-W-TOP?EN certification:
Both versions are certified according to EN 60320-1.
The new L-version however is certified for large cables as follows:
H07RN-F 3G 2,5 mm²
The old version is certified for cable types:
H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm²
UL certification:
The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498.
JET certification:
Both versions are JET certified.
When is the IEC 60799 relevant?This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections.
Why is the bushing loose in one direction?This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required.
