NAC3FX-W-TOP
neutrik-fr / Produits / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 Cable Connectors / NAC3FX-W-TOP

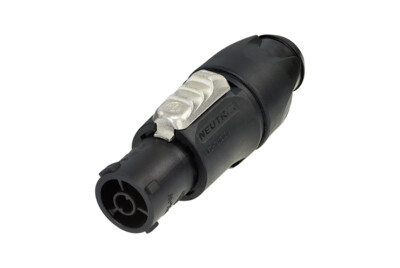

NAC3FX-W-TOP

Download Data Sheet

PHASE OUT
direct replacement / successor: NAC3F-TRUE1-S



Connecteur de câble femelle verrouillable, bornes à vis.

Le powerCON TRUE1 TOP est un véritable connecteur secteur 16 A verrouillable.

Il remplace les fiches d'appareils partout où une solution très robuste associée à un dispositif de verrouillage est nécessaire pour garantir une connexion électrique sûre.

Le powerCON TRUE1 TOP est un connecteur avec pouvoir de coupure (CBC), c'est-à-dire qu'il peut être connecté ou déconnecté sous charge ou sous tension. Il vous permet de respecter les normes de sécurité en vigueur en Europe.

Caractéristiques & avantages
  • Connecteur d'alimentation scellé robuste pour les environnements difficiles et exigeants
  • Utilise des matériaux résistants aux UV à fort impact
  • Véritable connecteur secteur avec pouvoir de coupure (CBC)
  • Connecteur monophasé 16 A verrouillable (USA : 20 A)
  • Système de verrouillage par rotation facile et fiable Extrêmement robuste et fiable
  • Rétention de câble Neutrik unique
  • Certifié ENEC selon IEC 60320
  • Certifié UL498



Téléchargement
st-nac3fx-w-top
pdf - 414.31 KB
st-nac3fx-w-top
dxf - 3.72 MB
nac3fx-w-top
stp - 7.54 MB
BDA 541 V5 - powerCON TRUE1 TOP - NAC3FX-W-TOP
pdf - 5.94 MB
BDA 559 V3 - powerCON TRUE1 TOP SAFETY NOTICE
pdf - 5.05 MB
BDA 557 V3 - powerCON TRUE1 TOP Power IN - Operating Instruction
pdf - 4.98 MB
BDA 556 V3 - powerCON TRUE1 TOP Cable Connector - Operating Instruction
pdf - 4.93 MB
CB-DE1-61593
pdf - 99.8 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
VDE Certificate ENEC10VDE NAC3FX-W-TOP NAC3FX-W-TOP-L
pdf - 310.98 KB
Links
UL Certificate (ECBT2.E343813) cUL Certificate (ECBT8.E343813)

Technical Information

Product
Title NAC3FX-W-TOP
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanical
Cable O.D. 6 - 12 mm
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Accessories

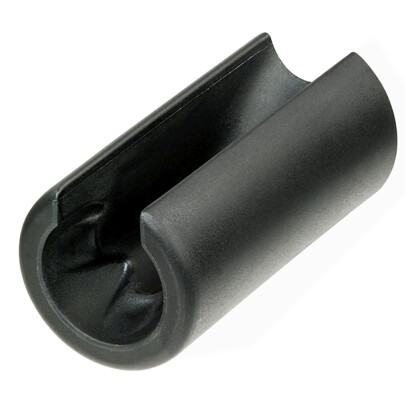

HTAC

Hand tool for tightening the bushing of the powerCON TRUE1.

Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB.png
SCNAC-FX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.
