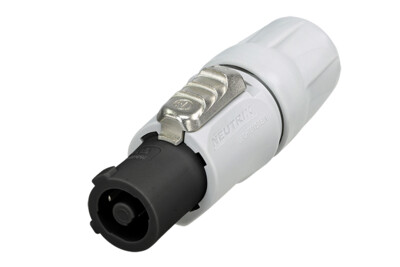

NAC3FCB-1
*** DISCONTINUED ***
Direct replacement / successor: NAC3FXXB-W-S (cable OD 6-12 mm) and NAC3FXXB-W-L (cable OD 10-16 mm)
Lockable cable connector, power-out, screw terminals, grey, V-0 Insert
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features & Benefits
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique Neutrik chuck type strain relief
- Improved kink protection by two-component bushing
- UL, cUL recognized components
VDE certified - V-0 Flammability rated insert
- Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles
Downloads
Technical Information
| Product | |
|---|---|
| Title | NAC3FCB-1 |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 10 GΩ (initial) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 61984:20 A 250 V AC |
| Rating USA | UL 1977:20 A 250 V AC |
| Mechanical | |
|---|---|
| Cable O.D. | 6 - 15 mm (1) |
| Lifetime | > 1000 mating cycles |
| Wiresize | 2,5 mm² |
| Wiresize | 12 AWG |
| Locking device | Quick Lock |
| (1) | Cable O.D. range limited to 6 mm - 14 mm acc. VDE |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA 6.6) |
| Strain relief | Polyacetal |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability Rating | UL 94 V-0 |
