NA3MP
neutrik-fr / Produits / NA3MP

NA3MP

Download Data Sheet

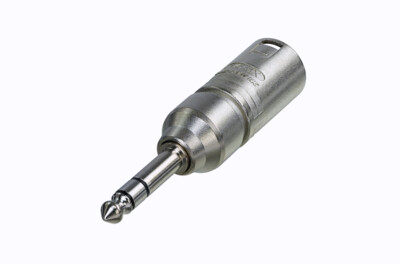

3-pole XLR male - stereo 1/4" plug (Tip, Ring, Sleeve contact)

Features & Benefits
  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
  • Rugged diecast shell for best reliability
Downloads
na3mp-2
pdf - 35.25 KB
na3mp-3
dxf - 12.96 KB
na3mp
stp - 1.02 MB
07 Section Accessories and Patch Panels PG EN 202202-V22
pdf - 7.3 MB

Technical Information

Product
Title NA3MP
Connection Type Adapter
Electrical
Contact resistance ≤ 3 mΩ (XLR)
Contact resistance ≤ 6 mΩ
Dielectric strength 1.5 kV dc / > 1 kVdc (XLR/Plug)
Insulation resistance > 2 GΩ
Mechanical
Wiresize
Locking device Latch lock
Material
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3) (plug)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating gal Cu/Ni
Environmental
Temperature range -20 °C to +65 °C
